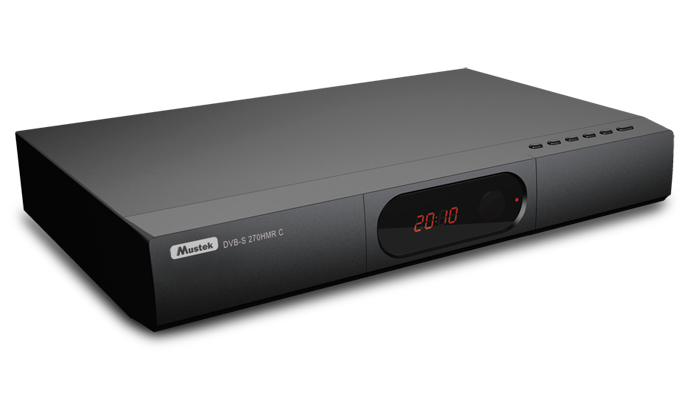

DVB-S 270HMR C

DVB-S 270HMR C

Product Type Stationary DVB-S set top box
Tuner & channel RF input connector: F-TYPE
RF output (loopthrough): F-TYPE
Receiving channel range: 950~2150MHz
Demodulation: QPSK/8PSK/LDPC/BCH
LNB controlling: 22kHz, 13/18V
Decoding Video decoder: MPEG-4 AVC/H.264 [email protected], MPEG-2 [email protected]
Audio decoder: AAC LC 2.0, 5.1 Version 1HE-AAC 2.0, 5.1 Version 1 and 2DD+, AC3
Video output ratio: 16:9/ 4:3 / letterbox /Auto
Video resolution: 1080p,1080i,720p,576p,576i,480p,480i
Categories: ,
Product Type Stationary DVB-S set top box
Tuner & channel RF input connector: F-TYPE
RF output (loopthrough): F-TYPE
Receiving channel range: 950~2150MHz
Demodulation: QPSK/8PSK/LDPC/BCH
LNB controlling: 22kHz, 13/18V
Decoding Video decoder: MPEG-4 AVC/H.264 [email protected], MPEG-2 [email protected]
Audio decoder: AAC LC 2.0, 5.1 Version 1HE-AAC 2.0, 5.1 Version 1 and 2DD+, AC3
Video output ratio: 16:9/ 4:3 / letterbox /Auto
Video resolution: 1080p,1080i,720p,576p,576i,480p,480i
Function OSD language: Multi languages
Media playback: MP3, JPEG, AVI, MKV
Record through USB HDD: Yes
Timeshift through USB HDD: Yes
DVB subtitle: Yes
Teletext: VBI/OSD
Channel search with automatic / manual: Yes
Favorite list editing for both radio and TV: Yes
Parents lock: Yes
Timer setting: Yes
Logical Channel Numbering (LCN): Yes
SCPC & MCPC Receivable from C/Ku Band Satellites: Yes
Support DisSEqC 1.0/1.1/1.2 , Support USALS: Yes
Front panel Display type: LED array
Infra-red receiver: Yes
Function buttons: Yes
Power indicator (LED): Yes
Terminal Main power cable: Fixed type
Tuner: RF input x1, RF loop through x1
L/R audio output: Yes
CVBS video output: Yes
Scart: TV x1
Y Cb/Pb Cr/Pr(Component): Yes
HDMI: Output x 1
SPDIF: Coaxial x1
Data port: USB 2.0 x1
Common Interface slot: x1
Power supply Input voltage: AC120/240V, 50/60Hz
Power consumption: Max. 8W
Dimensions (L x W x H) ; weight 270 x 150 x 40 mm , 1.1 kg
Accessories Remote control, user guide
Color Black
