Mustek PowerMust 3000 RM Sinewave LCD Online IEC
Out of stock
Mustek PowerMust 3000 RM Sinewave LCD Online IEC
Features
- Pure Sine Wave
- True double-conversion online UPS
- Wide input voltage range
- Output Power factor 1
- Emergency power off (EPO) function
- SNMP + USB + RS 232 multiple communications
- Selectable output voltage
- Output voltage regulation < 1%
- Programmable power management outlets
- Output 50Hz/60Hz frequency converter mode
- Higher output crest 3:1
- ECO mode energy saving
- Hot swappable battery design
| MODEL | PowerMust 1000 LCD, RM | PowerMust 2000 LCD,RM | PowerMust 3000 LCD,RM | |||
| INPUT | ||||||
| Capacity | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W | |||
| Voltage Range | 200/208/220/230/240 VAC | |||||
| THDI | ≤ 5% nominal input voltage | |||||
| Frequency Range | 40 ~ 70 Hz | |||||
| Phase | Single phase with ground | |||||
| Power Factor | ≥ 0.99 @ nominal voltage (100% load) | |||||
| OUTPUT | ||||||
| Output voltage | 200/208/220/230/240 VAC | |||||
| AC Voltage Regulation | ± 1% | |||||
| Frequency Range (Synchronized Range) | 57 ~ 63 or 47 ~ 53 Hz | |||||
| Frequency range ( Batt. Mode) | 50 or 60 Hz ± 0,1 Hz | |||||
| Current Crest Ratio | 3:1 (max.) | |||||
| Harmonic Distortion | ≤2% THD (Linear Load); ≤4% THD (non-Linear Load) | |||||
| Waveform (Batt. Mode) | Pure Sinewave | |||||
| BATTERY | ||||||
| Battery Type | 12 V / 7 AH x 3 | 12 V / 7 AH x 6 | 12 V / 9 AH x 6 | |||
| Recharge Time | 3 hours recover to 95% capacity for internal battery @2 A charging current | |||||
| Charging Current | 200/208/220/230/240 VAC: default 2 A, max. 12 A adjustable | Default 2A, Max 8A adjustable | ||||
| BACK-UP TIME | ||||||
| Back up time with PF0,8 full load | 11,0 min. | 11,5 min. | 9,6 min. | |||
| AUDIBLE ALARM | ||||||
| Battery Mode | Sounding every 5 seconds | |||||
| Battery Low | Sounding every 2 second | |||||
| Fault | Continuesly sounding | |||||
| Overload | Sounding every second | |||||
| TRANSFER TIME | ||||||
| BAT <–> LINE | 0 ms | 0 ms | 0 ms | |||
| INV <–> BYPASS | < 4 ms | < 4 ms | < 4 ms | |||
| INV –> ECO | < 10 ms | < 10 ms | < 10 ms | |||
| PHYSICAL | ||||||
| Dimension, D X W X H (mm) | 410 x 438 x 88 | 630 x 438 x 88 | ||||
| Net Weight (kgs) with internal battery | 14,1 | 23,3 | 27,5 | |||
| ENVIRONMENT | ||||||
| Operation Environment | 0-40˚ | |||||
| Operation Humidity | 20-95% (non-condensing) | |||||
| Noise Level | Less than 50 dB @1 Meter | |||||
| INTERFACE | ||||||
| EPO | Emergency Power Off | |||||
| Intelligent slot | External Type of SNMP / RS485 / AS 400 / USB card | |||||
| AC Outlets | IEC320 C13 x 8 | IEC 320 C13 x 8 | IEC320 C13 x8 + C19 x 1 | |||
| USB port | Yes | |||||
| RS232 | Yes | |||||
| ACCESSORIES | ||||||
| Accessories | User manual, 2P EPO connector x 1, Input power cord schuko, Output cable IEC x2, Pedestal for tower installation x 2, Fitting Ear x 2, USB cable x 1, Software CD | |||||
| MANAGEMENT | ||||||
| Smart RS 232 or USB Port | Supports Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC | |||||
| Optional SNMP | Power Management from SNMP manager and Web browser | |||||
Additional information
| Weight | 5.2 kg |
|---|

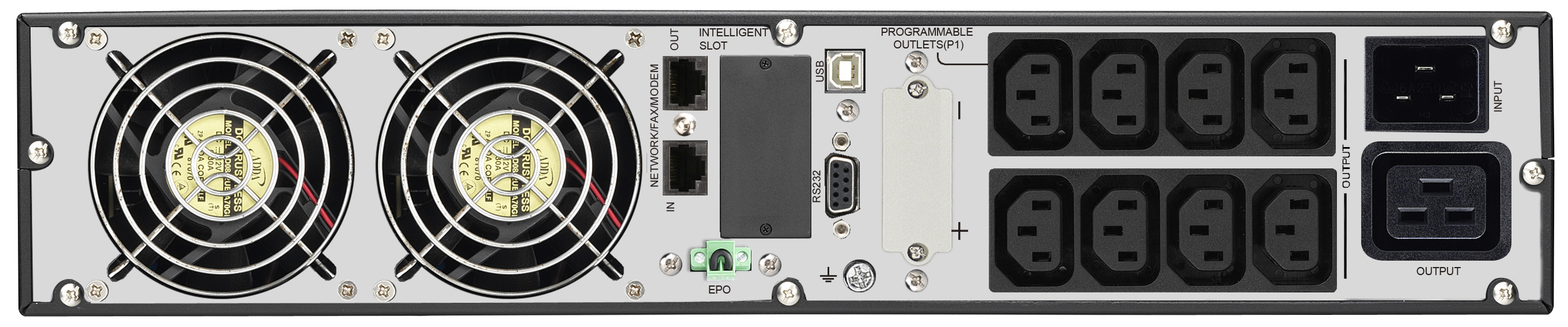

 | PM 3000 LCD RM Online IEC back.jpg | 0.9mb | 20-09-2017 |

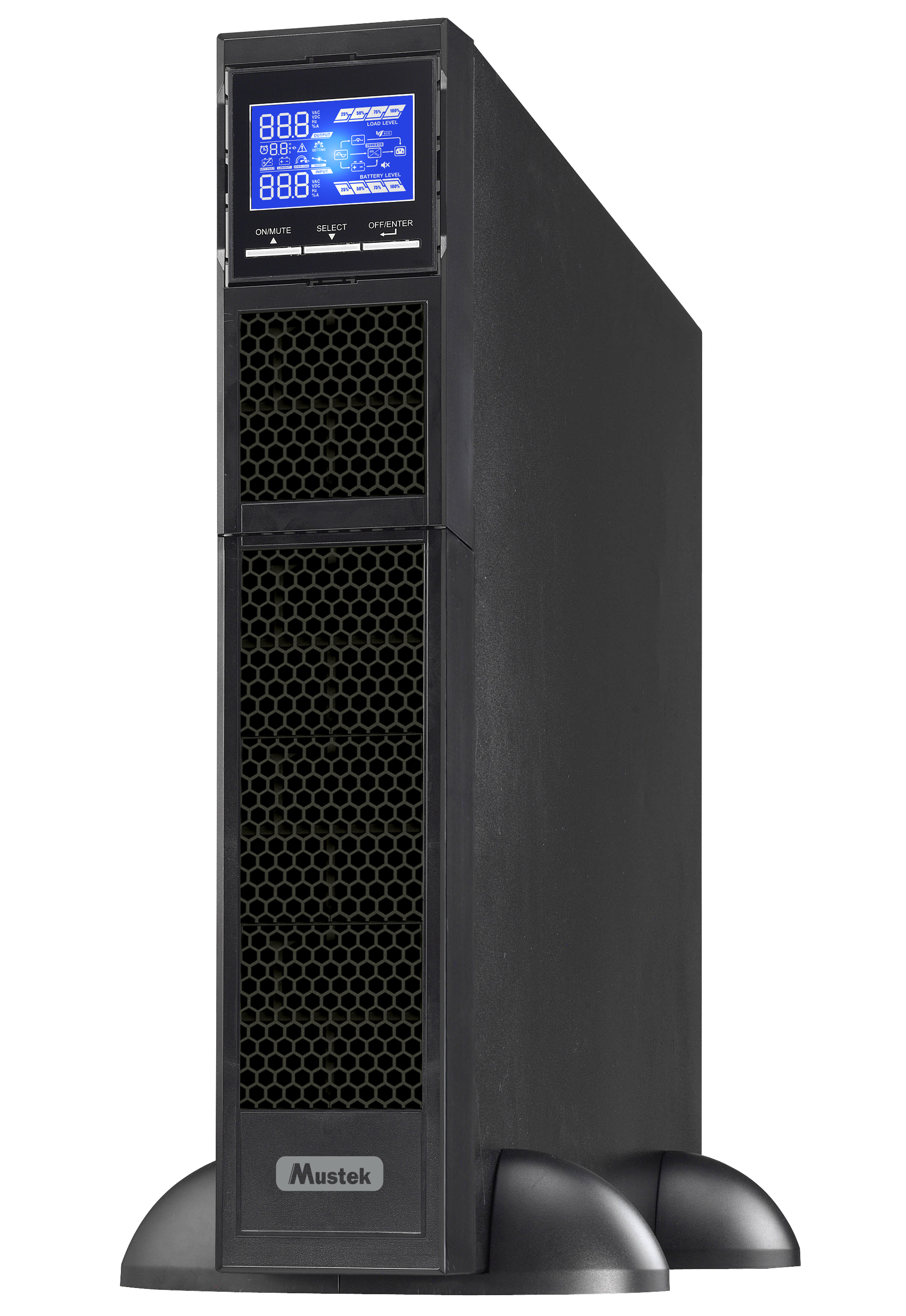

| PM 1000-2000-3000 LCD RM Online IEC front.jpg | 1.6mb | 20-09-2017 |
| 1000-2000-3000 RM LCD Online IEC rev.pdf | 0.8mb | 29-01-2018 |
| PowerMust 1000_2000_3000 RM LCD Online IEC.pdf | 2.6mb | 04-06-2018 |
