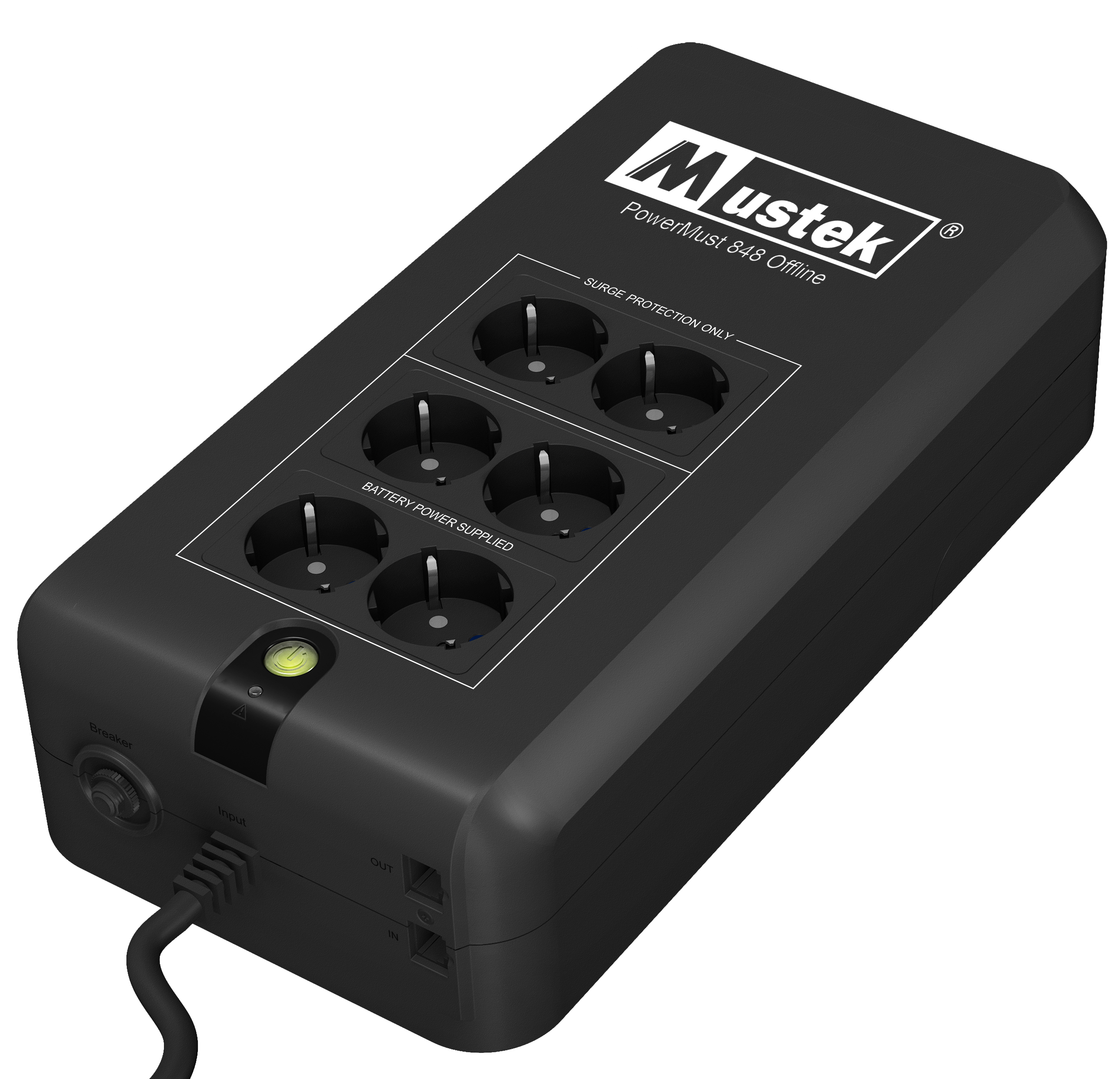

Mustek PowerMust 848 (800VA), Offline, Schuko
Mustek PowerMust 848 (800VA), Offline, Schuko
Features
- Offline UPS
- Quick installation and easy operation
- Discharge, Short Circuit and overcharge protection
- Visiual and audible Alarm system
- High reliability
- Provides full protection
- Easy User-replaceable Battery Design
| Specification | ||
| MODEL | PowerMust 848 offline | |
| INPUT | ||
| Capacity | 800VA/400W | |
| Nominal Voltage | 220 VAC | |
| Voltage Range | 170-270 VAC | |
| Frequency Range | 50/60 Hz | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | ± 10% | |
| Frequency Range (Batt. Mode) | 50 / 60 Hz ± 1 Hz | |
| Transfer Time | Typical 2-8 ms, 12 ms max. | |
| Line Mode Voltage | Same as input voltage | |
| Waveform (Batt. Mode) | Step Wave | |
| Protection | TVSS, Discharge, Overcharging, Discharging and Short Circuit Protection | |
| BATTERY | ||
| Battery Type | 12 V / 7 AH x 1 | |
| Recharge Time | 10 hours max. (recharge to 90% capacity) | |
| Backup Time (100W SPS Load) | 20 min | |
| INDICATORS | ||
| Line Mode Normal | Off | |
| Battery Normal | Off | |
| Battery Low | Lighting | |
| Overload (battery mode) | Lighting | |
| Fault | Lighting | |
| AUDIBLE ALARM | ||
| Battery Normal | Sounding every 5 seconds | |
| Low Battery at battery mode | Sounding every second | |
| Fault | Continuously sounding | |
| Overload | Sounding every 0.5 second | |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 335 x 170 x 92.5 | |
| Net Weight (kgs) | 4.1 | |
| ENVIRONMENT | ||
| Operation Humidity | 0-85% RH @ 0-40˚ C (non-condensing) | |
| INTERFACE | ||
| Power Cord Connector | IEC fixed cable | |
| Outlet | Schuko x 6 ( 2 for surge only, 4 for battery backup) | |
| Phoneline/ Network protection | yes | |
| USB port | – | |
| LED/LCD | LED x 1 | |
