PowerMust 400 LCD
PowerMust 400 LCD
| Product type | Uninterrupted power supply; Line-interactive |
| Model | PowerMust 400 LCD |
| Capacity | 400 VA / 240W |
| Product type | Uninterrupted power supply; Line-interactive |
| Model | PowerMust 400 LCD |
| Capacity | 400 VA / 240W |
| Input | Phase: Single |
| Voltage: 110/120VAC or 220/230/240 VAC | |
| Voltage range: 81~145VAC / 162~290 VAC ±5% | |
| Frequency: 50 / 60Hz (Auto Sensing) | |
| Frequency range: 45 ~ 55 Hz / 55 ~ 65Hz | |
| Output | Phase: Single |
| Voltage (Batt. mode): 110/120 VAC or 220/230/240 VAC | |
| Voltage regulation (Batt. mode): ±10% | |
| Frequency: 50Hz or 60Hz | |
| Frequency regulation (Batt. mode): ±1Hz | |
| Output waveform (Batt. mode): Modified Sinewave | |
| Battery | Battery type & number: 12V/4.5AH * 1 pc |
| Back up time (at a PC load with 15″ monitor): 8~12 minutes |
|
| Recharge time: 6 hours to 90% after complete discharge | |
| Transfer time | Typical: 4~8 ms |
| Indicator | LCD: Display for UPS operating information |
| Audible alarm | Battery mode: Sounding every 10 seconds |
| Low battery at battery mode: Sounding every second | |
| Fault: Continously sourding | |
| Battery replacement: Sounding every 2 seconds | |
| Overload: Sounding every 0.5 second | |
| Protection | Full protection: Discharge, overcharge, and overload protection |
| Physical | Dimension, D*W*H (mm): 330*100*140 |
| Net weight (kgs): 5 | |
| Environment | Operating Environment: 0- 40°C, 0-90 % relative humidity (non-condensing) |
| Noise Level: Less than 40dB | |
| Interface | Smart RS-232: Support Windows family, Linux, IBM Aix, Sun Solaris, Compaq True64, UnixWare, FreeBSD, HP-UX, and MAC |
| Accessories | AC input cablex1, IEC output cable x2, RS-232 cable x1, application CD, user guide |

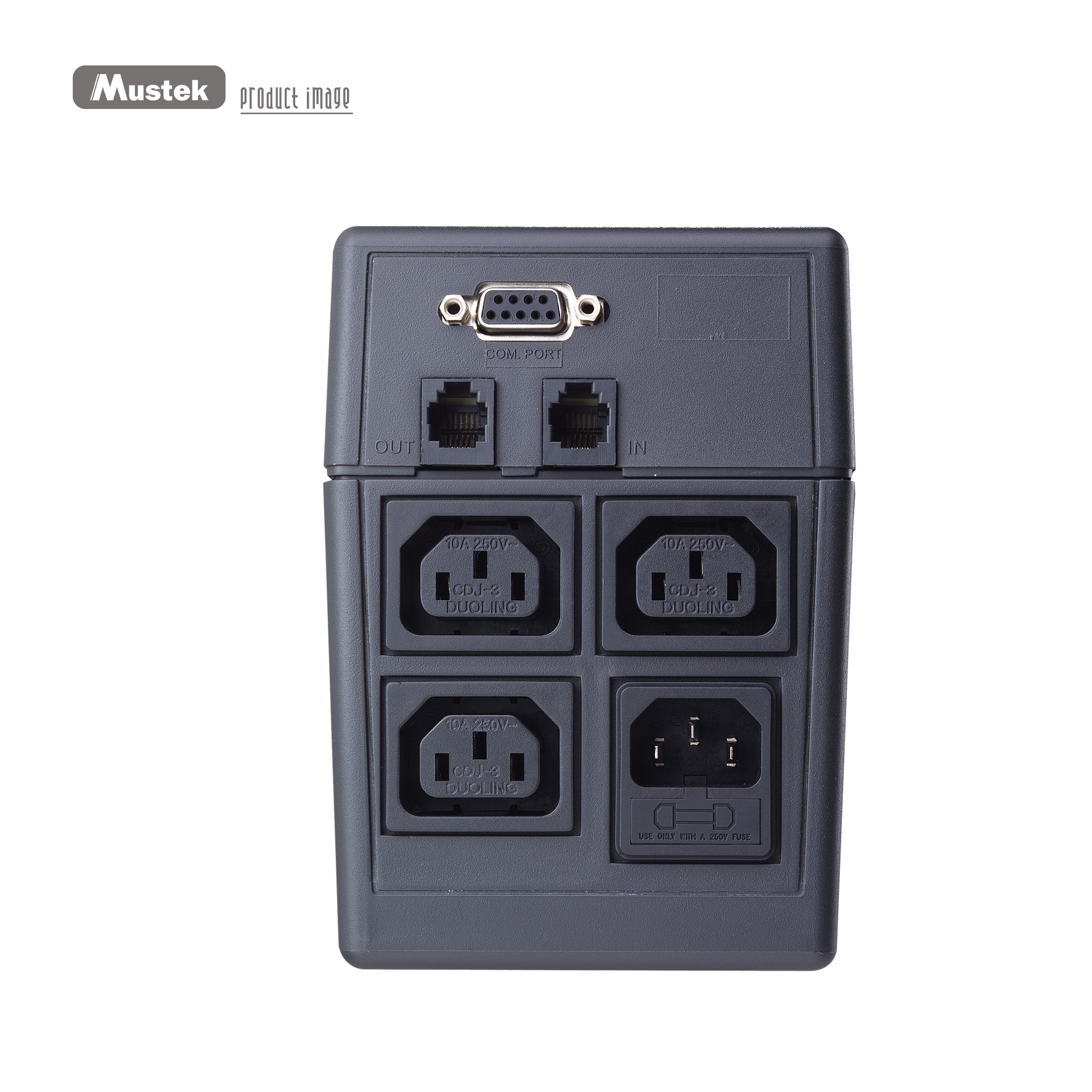

 | 15x15 product image 300dpi PowerMust 400-800 LCD_Back.jpg | 1.3mb | 14-07-2017 |

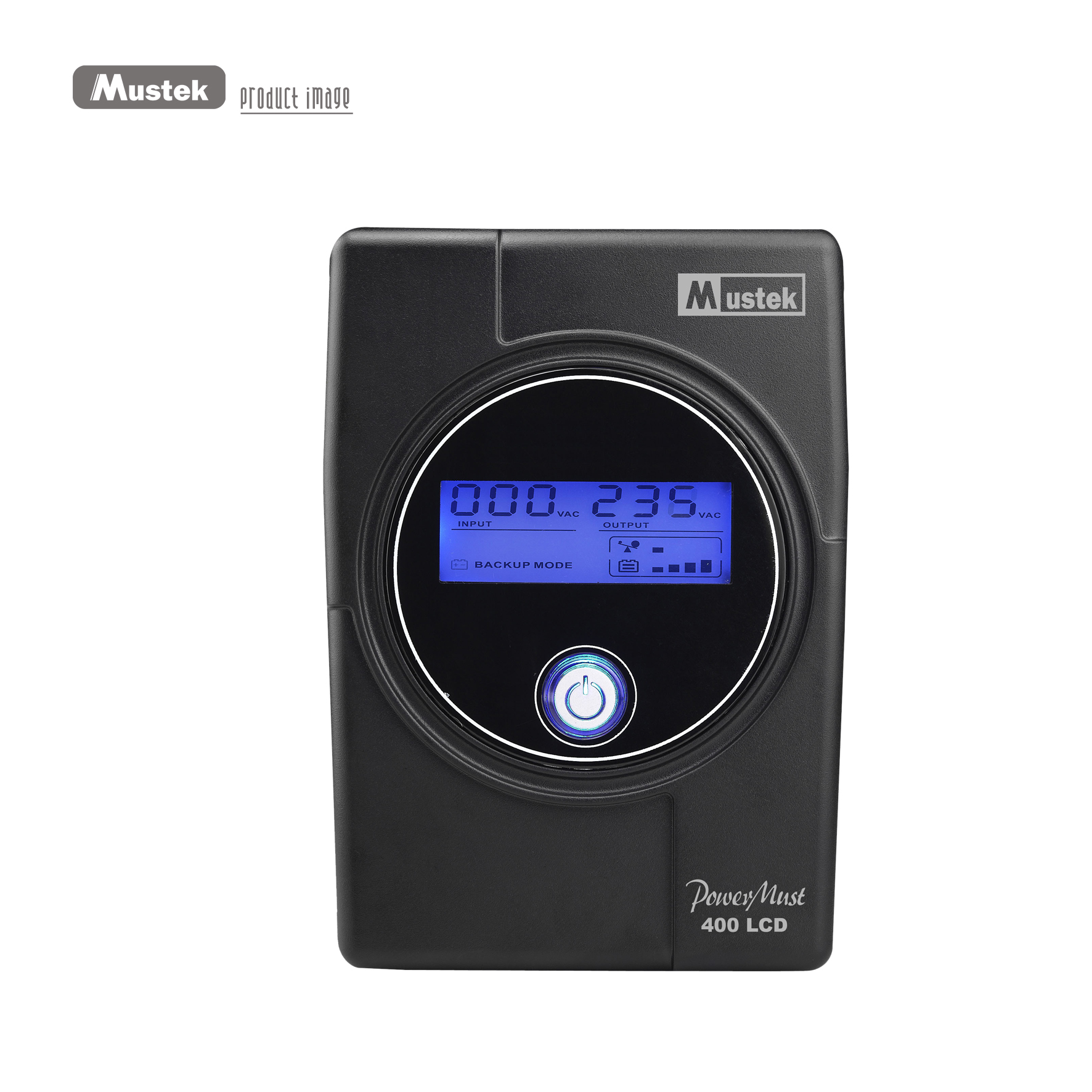

| 15x15 product image 300dpi PowerMust 400 LCD_front.jpg | 0.8mb | 14-07-2017 |

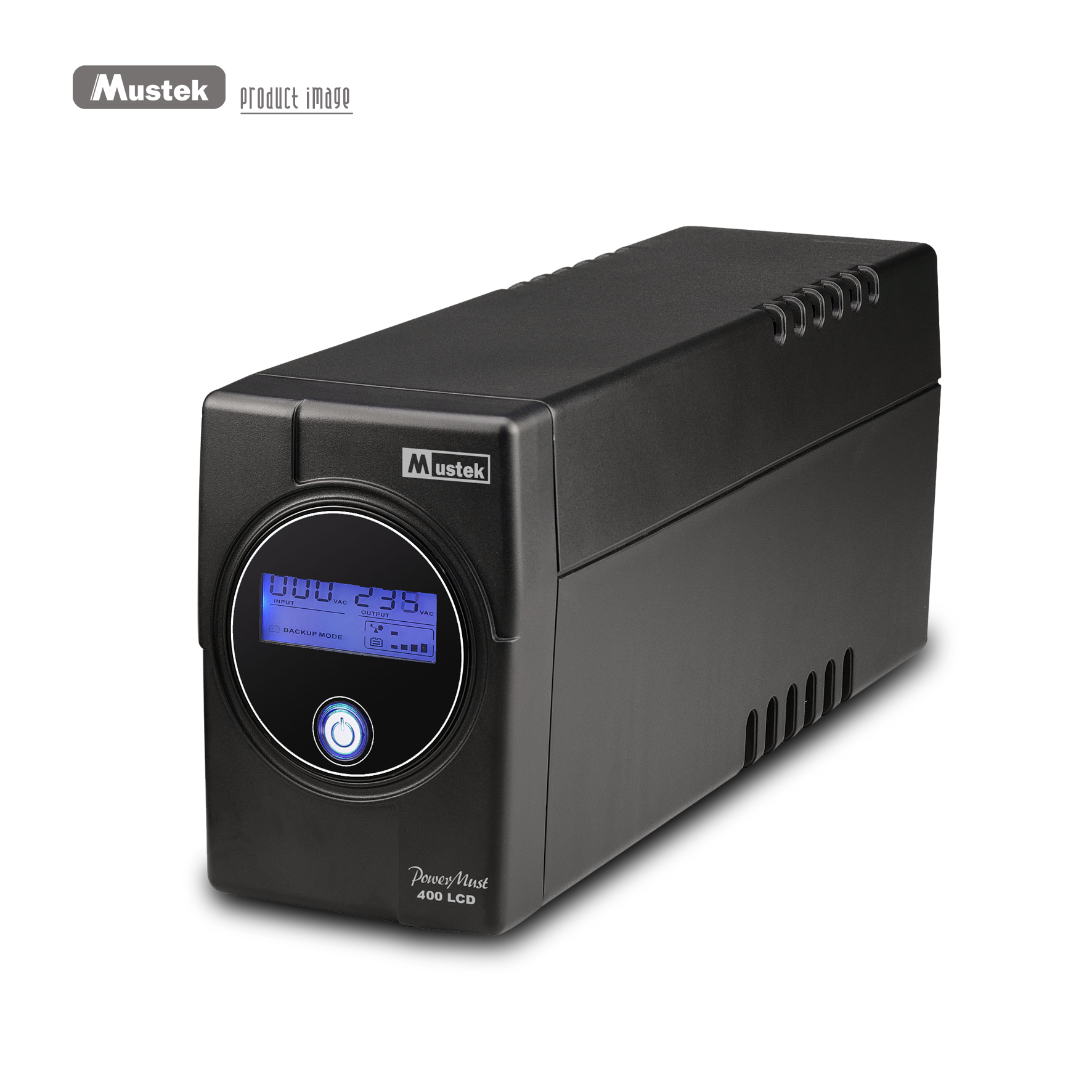

| 15x15 product image 300dpi PowerMust 400 LCD_Side.jpg | 0.7mb | 14-07-2017 |
| Product info PM400-800 LCD-En.pdf | 1.5mb | 14-07-2017 |
| Power Must 468 LCD-User Manual _ru.pdf | 0.4mb | 14-07-2017 |
| Power Must 468 LCD-User Manual _EN.pdf | 0.4mb | 14-07-2017 |
| Power Must 468 LCD-User Manual _ua.pdf | 0.4mb | 14-07-2017 |
