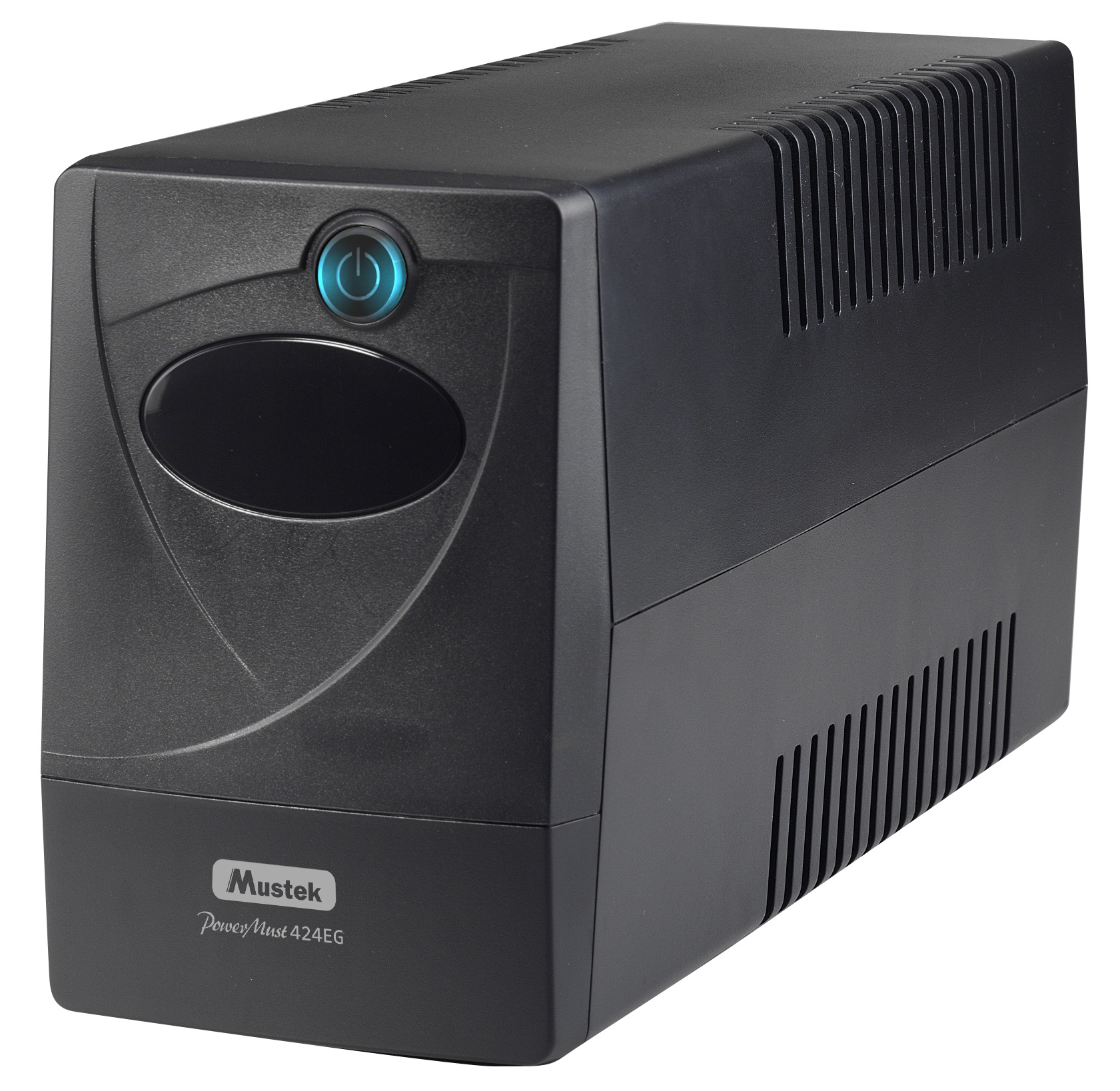

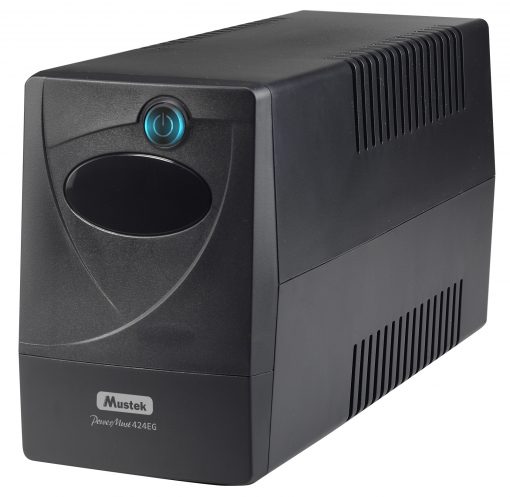

PowerMust 424 EG
PowerMust 424 EG
Built-in super smart charger , 90% fully charged in 4 hours
- Compact Size
- Excellent microprocessor control guarantees high reliability
- Short circuit and Overload Protection
- Simulated sine wave
- Cold start function
- Auto Restart while AC is recovering
- Off Mode Charging
- Generator Comaptible (Option)
| Product type | |
| Model: | PowerMust 424EG |
| Capactiy: | 400VA 240W |
| Input | |
| Voltage: | 220/230/240VAC |
| Voltage Range: | 162-290VAC |
| Frequency Range: | 60/50Hz |
| Output | |
| AC Voltage Regulation (batt mode): | 10% |
| Frequency Range (batt mode): | 50Hz + 1%Hz |
| Output Waveform (batt mode): | Simulated Sinewave |
| Transfer time: | Typical 2-6ms |
| Protection: | Discharge and overcharge protection |
| Battery | |
| Battery type & number: | 12V/4.5aH x1 |
| Recharge time: | 4 hours to 90% after complete discharge |
| Backup yime (half loading): | 8 minutes |
| Backup time (full loading: | 0.7 minutes |
| Audible alarm | |
| Battery mode: | Sounding every 10 seconds |
| Low battery at battery mode: | Sounding every second |
| Fault: | Continously sourding |
| Battery weak at AC mode: | n/a |
| Batter fault as AC mode: | n/a |
| Battery replacement: | Sounding every 2 seconds |
| Overload: | sounding every 0.5 second |
| Physical | |
| Dimension (DxWxH) mm: | 279 x 101 x 142 |
| Net Weight (kgs): | 3.55 |
| Environment | |
| Operation environment: | 0-90% relative humidity @0-40C (non-condensing) |
| Noise level: | Less dan 40dB |
| Interface | |
| Power cord connector: | n/a |
| IEC outlet: | n/a |

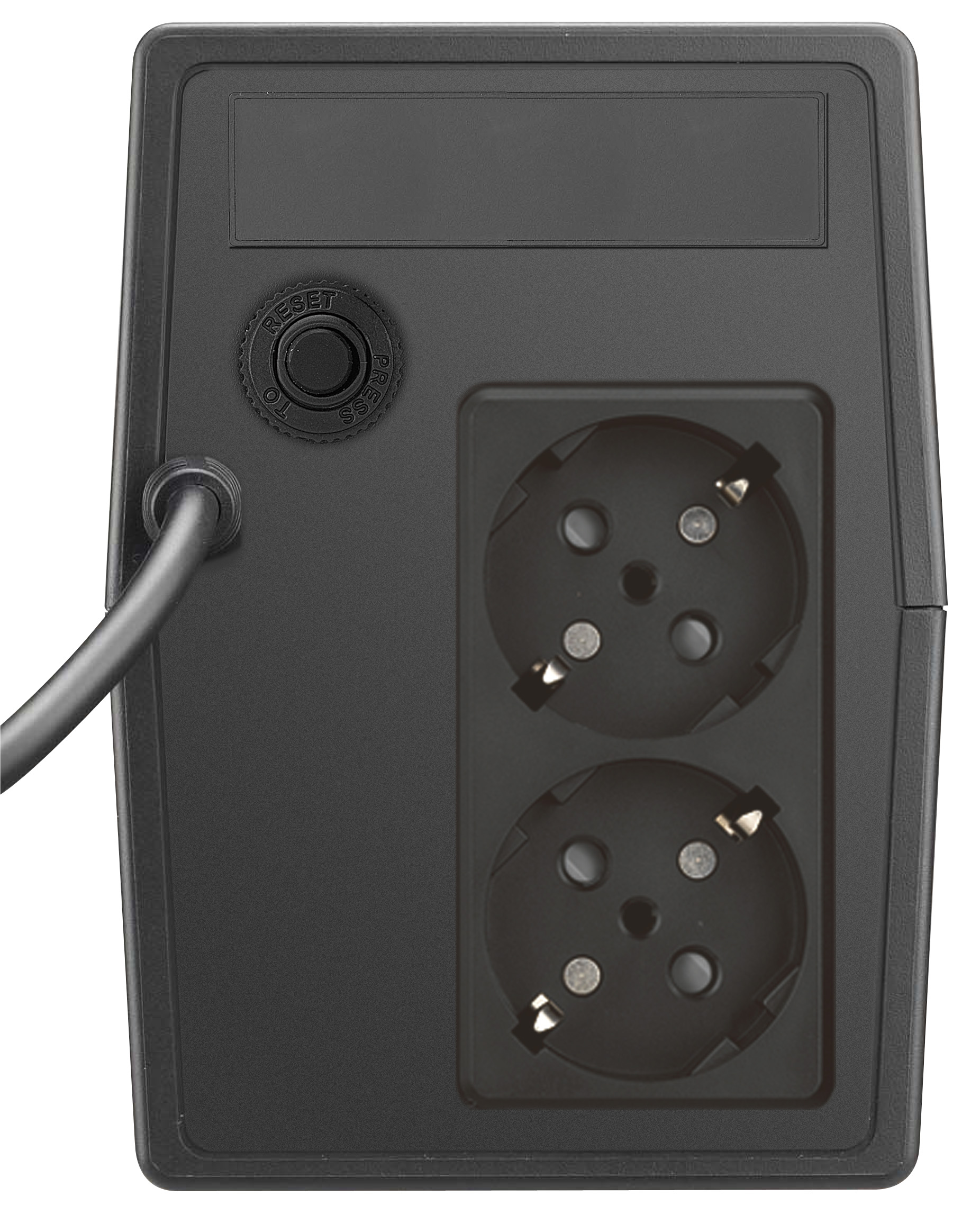

| Socket outlet: | 2x |
| Phoneline/Network protection: | n/a |
| RS-232: | n/a |
| USB port: | n/a |
| Accessories | |
| Accesoiries: | user guide |
Additional information
| Weight | 4.25 kg |
|---|
 | Product info PM424-636-848EG.pdf | 0.3mb | 14-07-2017 |
