PowerMust 6048 Online LCD

PowerMust 6048 Online LCD

Product type Uninterrupted power supply; Online
Capacity 6000 VA / 4800 W
Categories: ,
Product type Uninterrupted power supply; Online
Capacity 6000 VA / 4800 W
Input Voltage Range
Low line transfer:
176 VAC @ 100% load
110 VAC @ 50% load
Voltage Range
Low line/Comeback:
186 VAC @ 100% load
120 VAC @ 50% load
Voltage Range
High line transfer:
300 VAC
Voltage Range
Low line/Comeback:
290 VAC
Voltage Range
Frequency range:
46~54 Hz or 56~64 Hz
Voltage Range
Phase:
Single phase with ground
Voltage Range
Power factor:
≧ 0.99 @ 100% load
Output AC voltage regulation (Batt. mode): ±1 %
Frequency range (Synchronized Range): 46~54 Hz or 56~64 Hz
Frequency range (Batt. mode): 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current crest ratio: 3:1
Harmonic distortion:
≦ 3 % THD (Linear Load)
≦ 6 % THD(Non-linear Load)
Transfer time AC to DC: Zero
Transfer time Inverter to Bypass: Zero
Waveform (Batt. mode): Pure Sine Wave
Efficiency To AC mode: 89%
To battery mode: 88%
Battetry Battery voltage: 12 V/7 Ah x 20
Typical recharge time: 7 hours recover to 90% capacity
Charging current (max.): 1.0 A
Charging voltage: 273 VDC
Indicators LCD Panel:
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Alarm Battery mode:
Sounding every 4 seconds
Low battery:
Sounding every second
Overload:
Sounding twice every second
Fault:
Continuously sounding
Physical Dimension, DXWXH (mm): 592 X 250 X 576
Net weight (kg): 81
Operating environment Humidity: 20-90 % RH @ 0- 40°C (non-condensing)
Noise level: Less than 55dB @ 1 Meter
Management Smart RS-232/USB: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
Optional SNMP: Power management from SNMP manager and web browser
Accessories User guide, Software CD, USB cable, optional: SNMP card

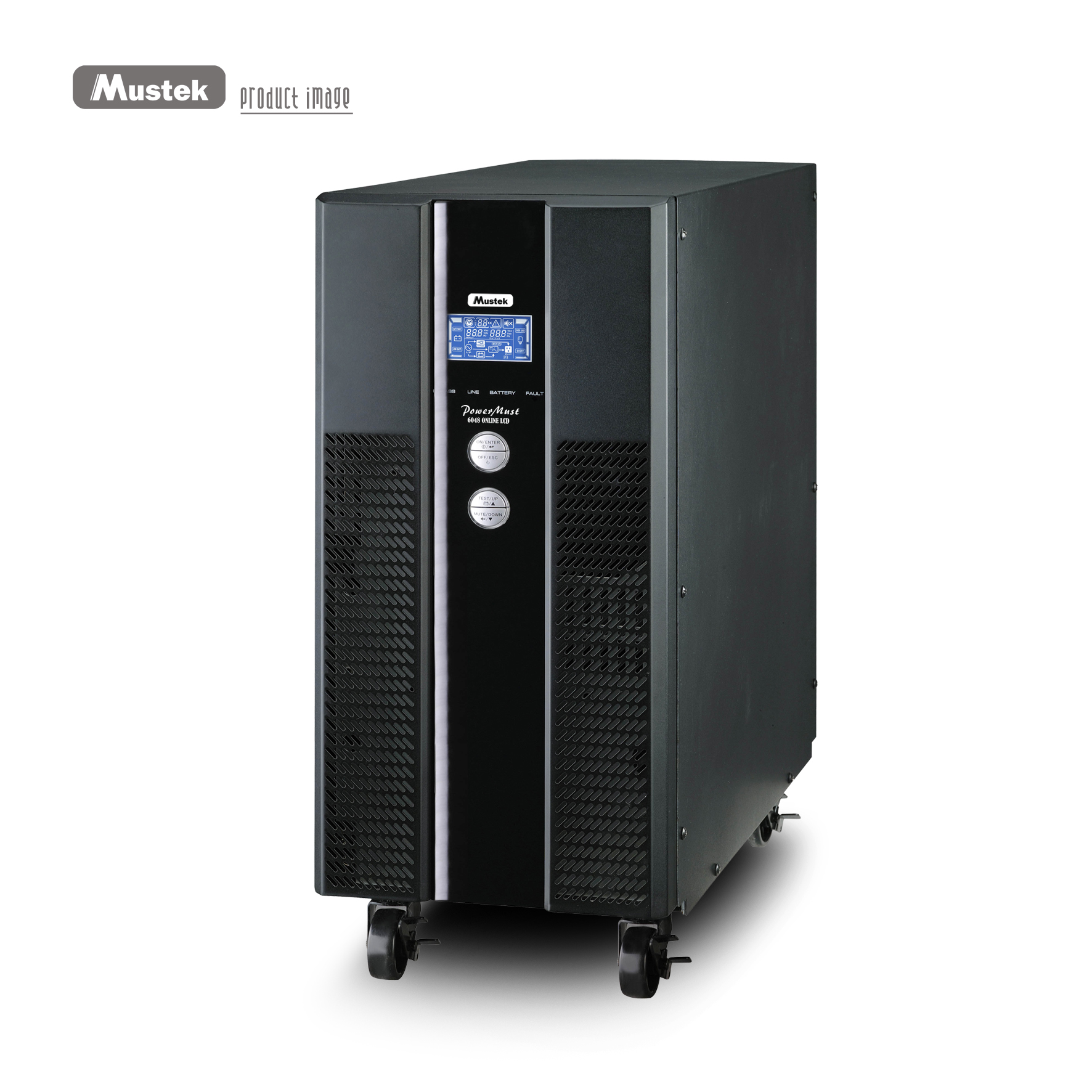

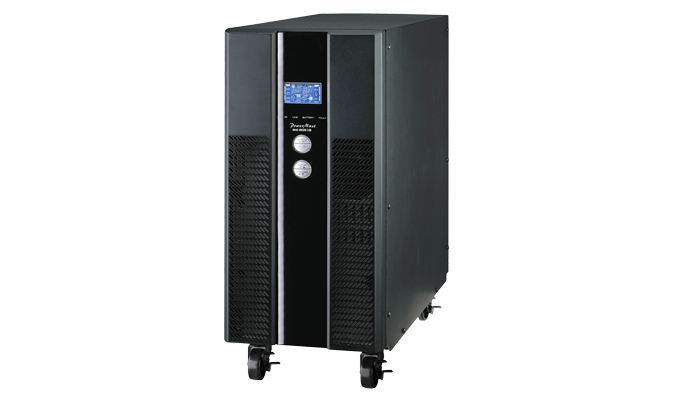

15x15 product image 300dpi PowerMust 6048 Online LCD.jpg0.8mb14-07-2017

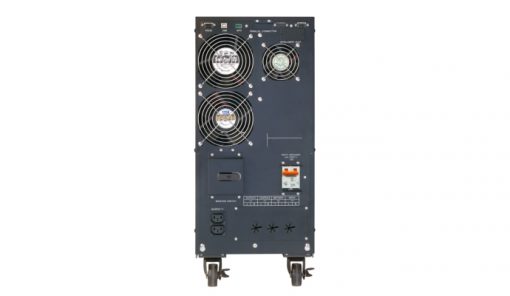

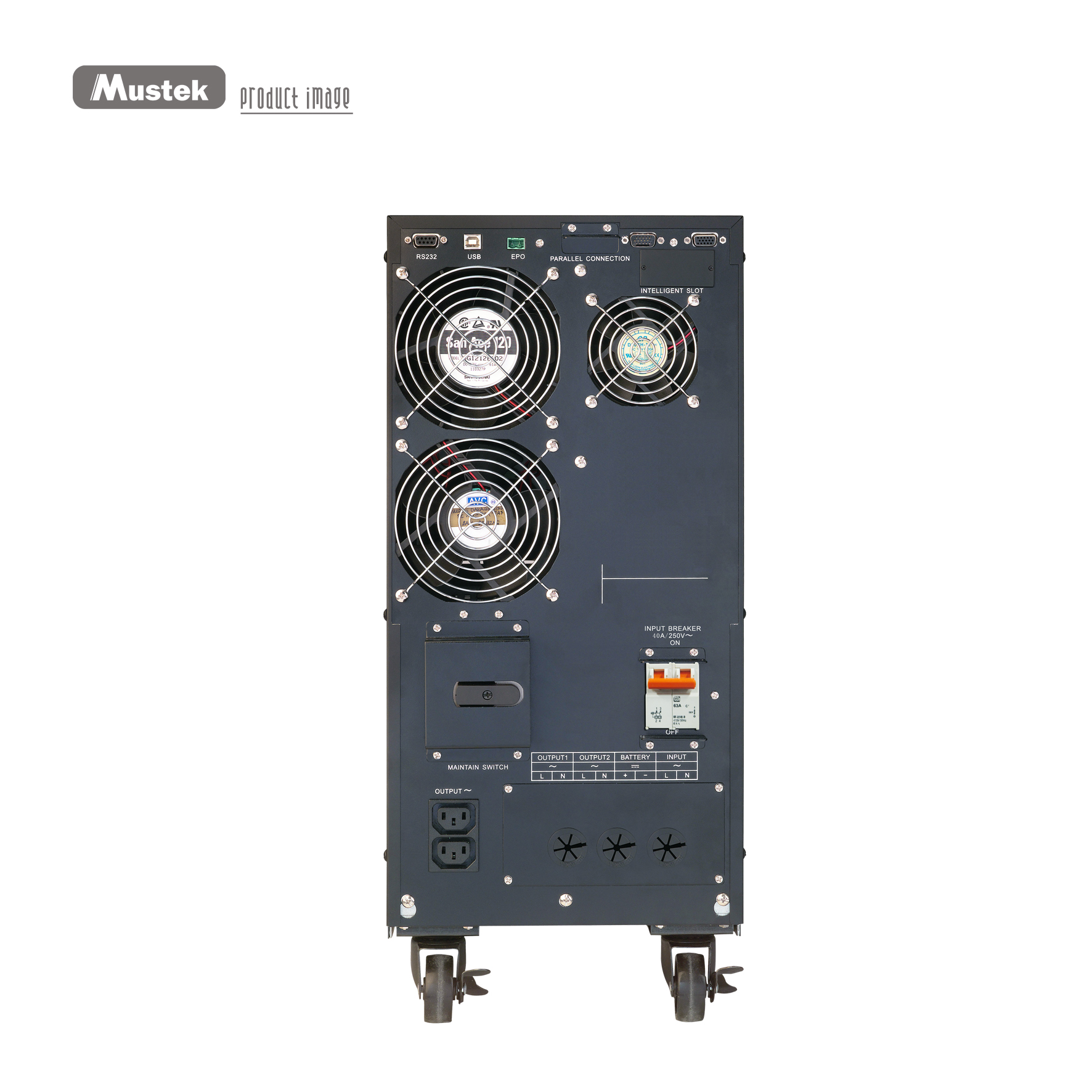

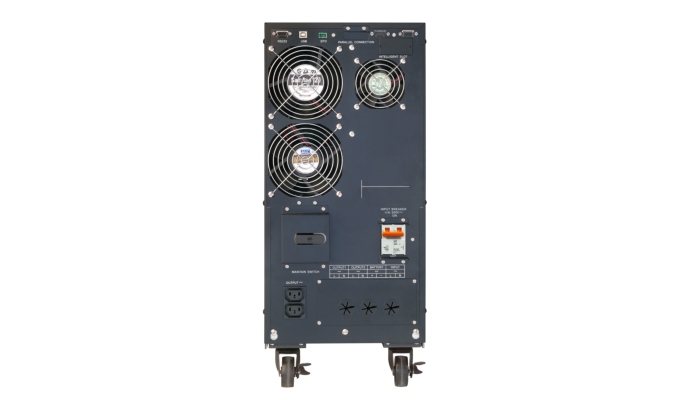

15x15 product image 300dpi PowerMust 6048 10800 Online LCD_back.jpg0.8mb14-07-2017
Product_info-PM_6048_10800_OLCD-En.pdf2.1mb14-07-2017
PowerMust_6048-10800_UM-En.pdf15.8mb14-07-2017
