Mustek PowerMust 1000 Sinewave LCD Online IEC

Out of stock

Mustek PowerMust 1000 Sinewave LCD Online IEC

Features

  • Pure Sine Wave
  • Output Power Factor 1
  • True double conversion
  • ECO mode energy saving
  • Microprocessor control optimizes reliability
  • 50/60 Hz Frequency Converter Mode
  • Generator compatible
  • Emergency Power Off (EPO) function
  • Output THDv < 2% Linear Load
  • Wide input voltage
  • True double-conversion online UPS







SKU: 1000-LCD-ON-T20 Categories: , ,
Specification
MODEL PowerMust 1000 LCD PowerMust 2000 LCD PowerMust 3000 LCD
INPUT
Capacity 1000VA/1000W 2000VA/2000W 3000VA/3000W
Voltage Range 110-300 VAC
THDI < 5%
Frequency Range 40 Hz ~ 70 Hz
Phase Single phase with ground
Power Factor ≥ 0.99 @ nominal voltage (100% load)
OUTPUT
Output voltage 200/208/220/230/240 VAC
AC Voltage Regulation ± 1% (batt. Mode)
Frequency Range (Synchronized Range) 47 ~ 53  or  57 ~  63Hz
Frequency range ( Batt. Mode) 50/60 Hz ± 0.1 Hz
Current Crest Ratio 3:1
Harmonic Distortion ≤ 2% THD (Linear Load); ≤ 4% THD (Non-Linear Load)
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
AC Mode ≥ 89% @ Battery fully charged ≥ 91% @ Battery fully charged
Battery Mode ≥ 88% ≥ 90%
BATTERY
Battery Type 12 V / 7 AH x 3 12 V / 7 AH x 6 12 V / 9 AH x 6
Recharge Time 3 hours recover to 95% capacity for internal battery@ 2A charging current
Charging Current Default 2A, max.12A adjustable Default 2A, max.  8A adjustable
BACK-UP TIME
Back up time (PF 0,8 Full Load) > 5 min. > 5 min. > 4 min.
AUDIBLE ALARM
Battery Mode Sounding every 5 seconds
Battery Low Sounding every 2 seconds
Fault Continuesly sounding
Overload Sounding every second
TRANSFER TIME
BAT <–> LINE 0 ms 0 ms 0 ms
INV <–> BYPASS < 4 ms < 4 ms < 4 ms
INV –> ECO 0 ms 0 ms 0 ms
ECO –> INV < 10 ms < 10 ms < 10 ms
PHYSICAL
Dimension, D X W X H (mm) 397 x 145 x 220 421 x 190 x 318
Net Weight (kgs)
ENVIRONMENT
Operation Environment 0-45˚
Operation Humidity 20-95% (non-condensing)
Noise Level Less than 50 dB @ 1 Meter
INTERFACE
EPO Emergency Power Off
Intelligent slot External Type of SNMP / RS485 / AS 400 / USB card
AC Outlets IEC 4 x 8x 8 + 1
USB port USB
ACCESSORIES
Accessories User manual,EPO connector x1, Input power cord schuko, Output cable IEC x2, USB cable x 1, Software CD
MANAGEMENT
Smart RS 232 or USB Port Supports Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC
Optional SNMP Power Management from SNMP manager and Web browser

Additional information

Weight 5.2 kg

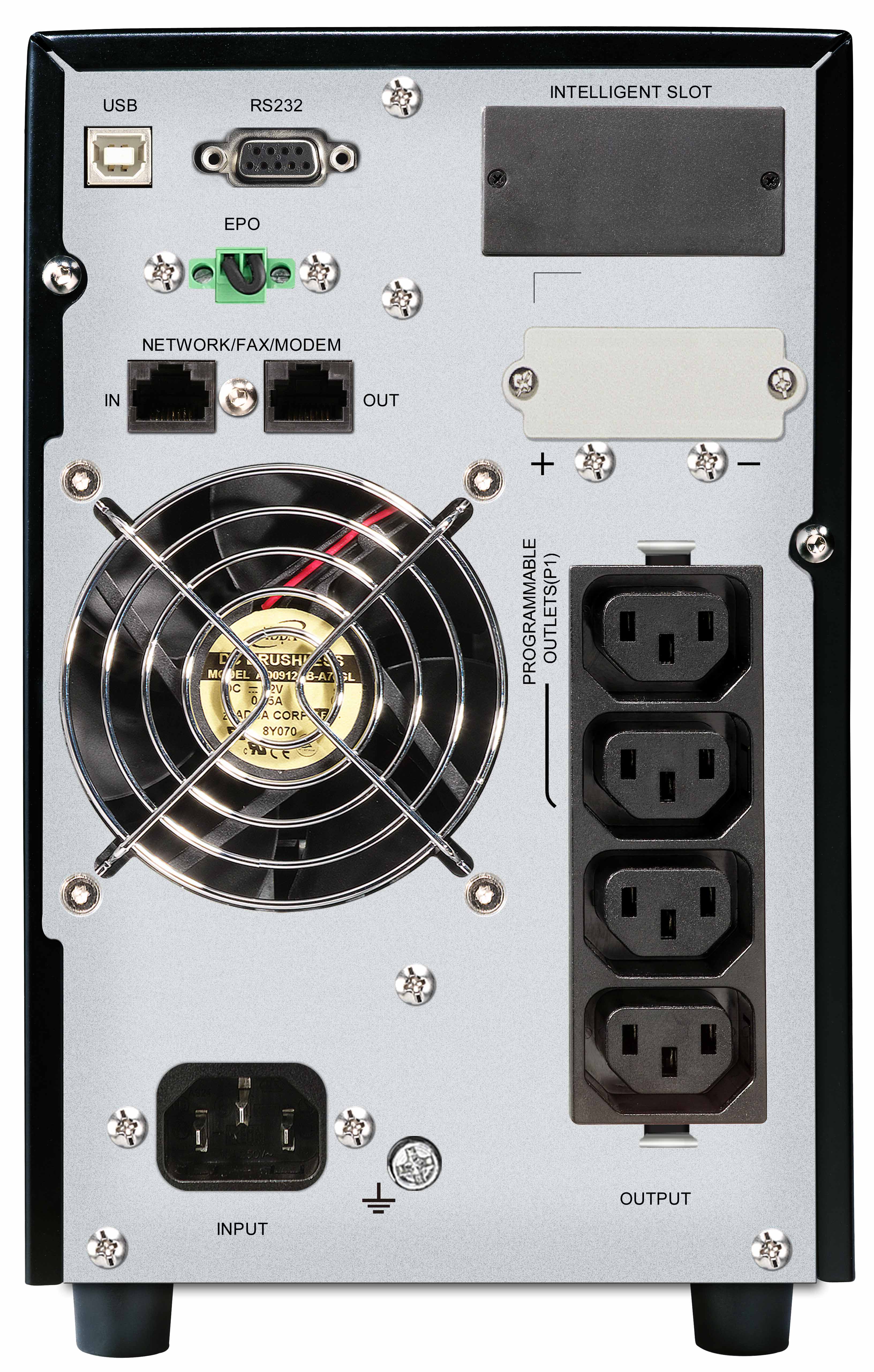

PM 1000 LCD Online IEC back.jpg1.2mb20-09-2017

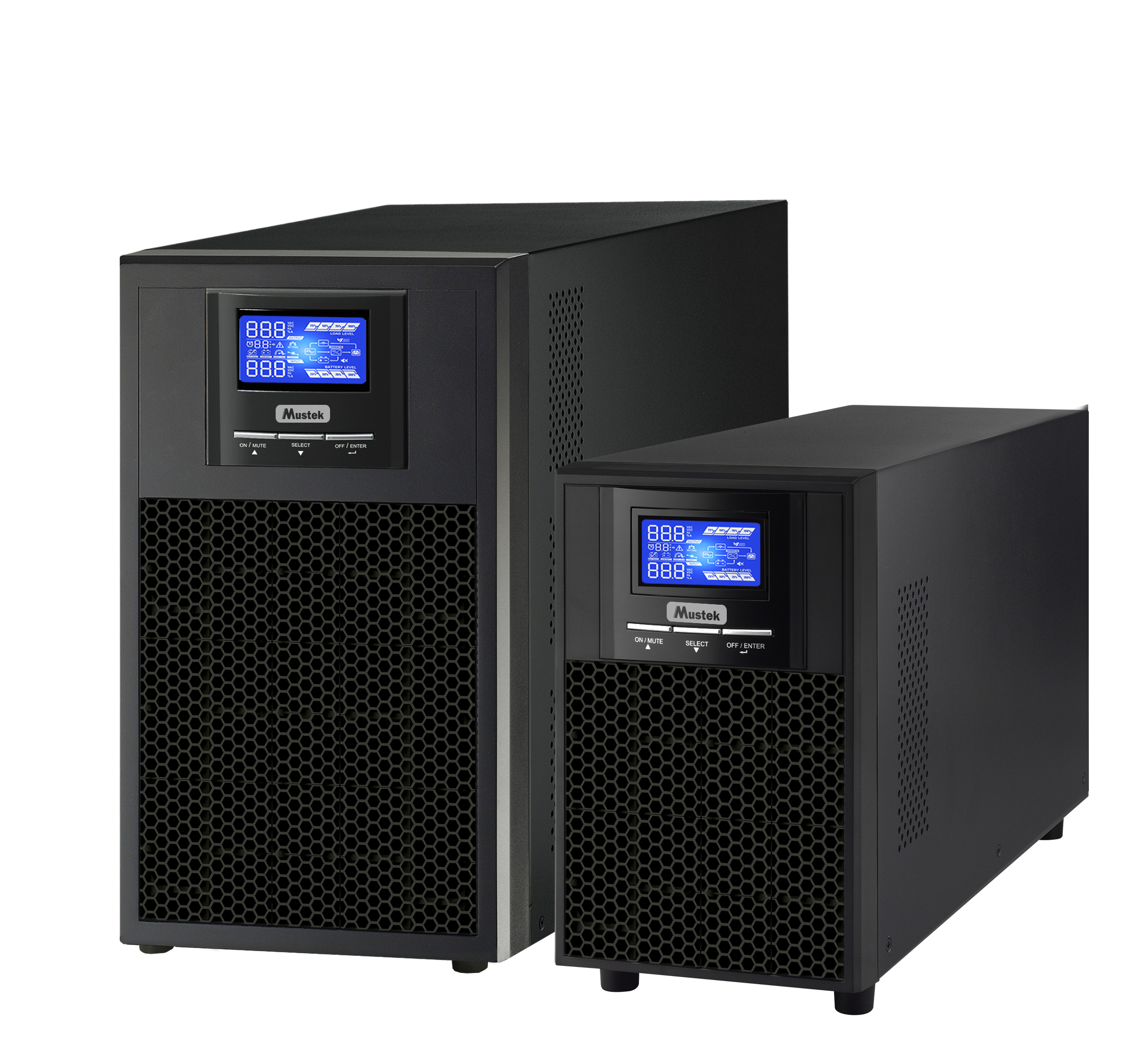

PM 1000-2000-3000 LCD Online IEC front.jpg1mb20-09-2017
