Mustek PowerMust 3000 Netguard LCD Line Int., IEC
Out of stock
Mustek PowerMust 3000 Netguard LCD Line Int., IEC
Features
- Pure Sine Wave
- High flexibility with rack/tower design
- Output power factor 0.9
- Pogrammable power management outlets
- Excellent microprocessor control guarantees high reliability
- Multiple communications available
- Visual and Audible Alarm System
- Boost and Buck AVR for voltage stabilization
- User–friendly and easy shift LCD Display
- ECO operation for energy saving
| Specification | |||||||
| MODEL | PowerMust 1500 | PowerMust 2000 | PowerMust 3000 | ||||
| INPUT | |||||||
| Capacity | 1500VA/1350W | 2000VA/1800W | 3000VA/2700W | ||||
| Power Factor | 0,9 | ||||||
| Voltage Range | 162-290 VAC | ||||||
| Frequency Range | 50 / 60 Hz, (Auto Sensing) | ||||||
| OUTPUT | |||||||
| Output voltage | 208/220/230/240 VAC | ||||||
| Voltage Regulation (Batt. Mode) | ± 1,5% (Before Battery Alarm) | ||||||
| Frequency Range (Batt. Mode) | 50 Hz or 60 Hz ± 1 Hz | ||||||
| Waveform (Batt. Mode) | Pure Sinewave | ||||||
| Harmonic Distortion | 2% @ 100% Linear Load, 5% max @ Non-Linear Load (Before battery Alarm) | ||||||
| Transfer Time | Typical 2-6 ms, 10 ms max. | ||||||
| Protection | Overload,short, discharge, overcharge and over temperature | ||||||
| BATTERY | |||||||
| Battery Type | 12 V / 7 AH | 12 V / 9 AH | 12 V / 7 AH | ||||
| Number | 4 | 4 | 6 | ||||
| Recharge Time | 4 hours recover to 90% capacity | ||||||
| BACK-UP TIME | |||||||
| Back up time (half loading) | 12 min. | 12 min. | 12 min. | ||||
| Back up time ( full loading) | 4,5 min. | 3,5 min | 3,5 min | ||||
| AUDIBLE ALARM | |||||||
| Battery Mode | Sounding every 10 seconds | ||||||
| Low Battery at battery mode | Sounding every 2 seconds | ||||||
| Fault | Continuously Sounding | ||||||
| Battery Replacement | – | ||||||
| Overload | Sounding every second | ||||||
| PHYSICAL | |||||||
| Dimension, W x L x H (mm) | 510 x 438x 88 | 630 x 438x 88 | |||||
| Net Weight (kgs) | 19,5 | 21,5 | 29,3 | ||||
| ENVIRONMENT | |||||||
| Operation Humidity | 20-80% RH @ 0-40˚ C (non-condensing) | ||||||
| Noise Level | Less than 45 dB | ||||||
| INTERFACE | |||||||
| Expandable Battery | Yes | ||||||
| EPO (Emergency Power Off) | Yes | ||||||
| SNMP/Slot Card | Yes | ||||||
| Power Cord Connector | Yes | ||||||
| Outlet | IEC 8 x | ||||||
| Phoneline/Network Protection | RJ45 | ||||||
| RS232 | Yes | ||||||
| USB Port | Yes | ||||||
| LED/LCD | LCD | ||||||
| Intelligent Slot | Yes | ||||||
| EFFICIENCY | |||||||
| AC Mode | 96% | ||||||
| Battery Mode | 82% | ||||||
| Buck & Boost Mode | 95% & 92% | ||||||
| ACCESSORIES | |||||||
| Accessories | Input Power Cord, IEC Output Cable x2, User Guide, CD, Tower Bracket, Fitting Ears x1 , USB Cable | ||||||
| MANAGEMENT | |||||||
| Smart RS 232 or USB Port | Supports Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux, Unix, and MAC | ||||||
| Optional SNMP | Power Management from SNMP manager and Web browser | ||||||
Additional information
| Weight | 5.2 kg |
|---|

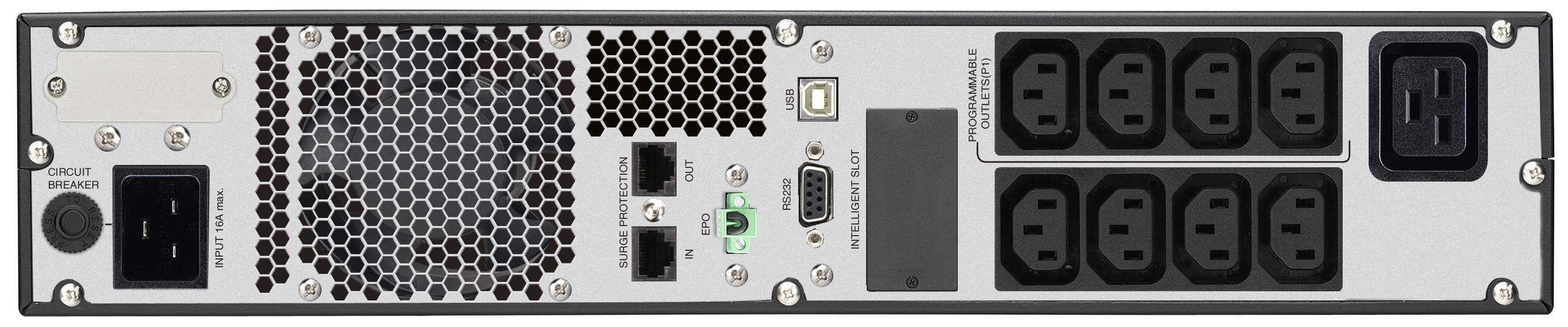

 | PM 3000 LCD NetGuard Line int IEC back.jpg | 1mb | 20-09-2017 |

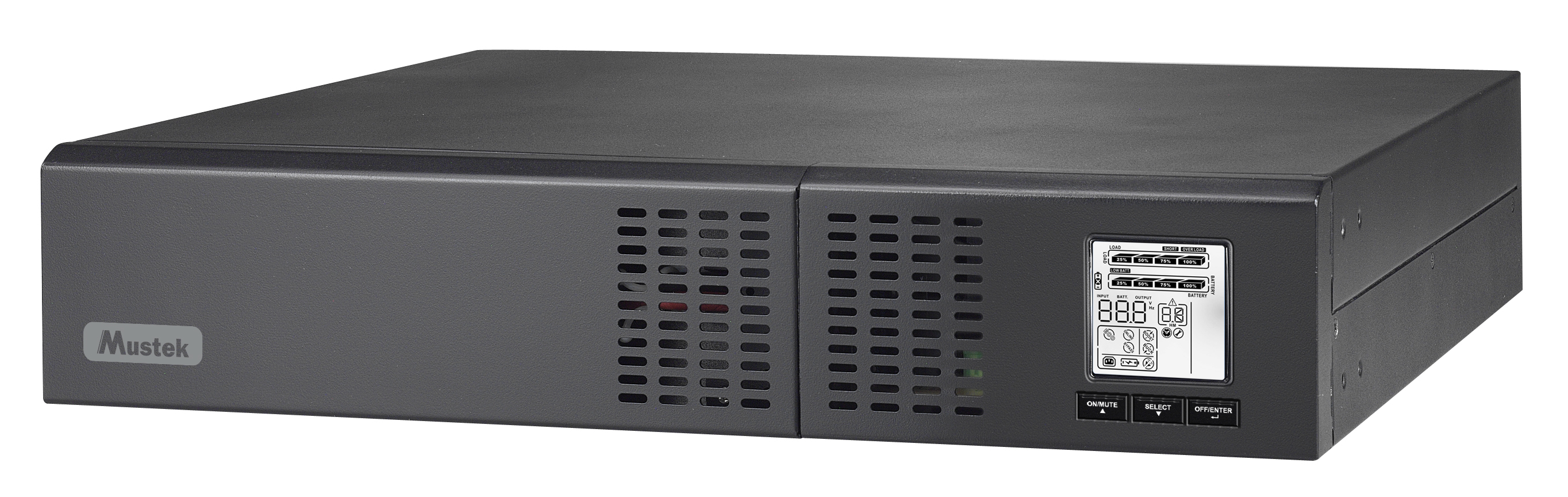

| PM 1500-2000-3000 LCD Netguard Line int IEC front.jpg | 1.2mb | 20-09-2017 |
