Mustek PowerMust 800 LCD , Line Int., IEC

Mustek PowerMust 800 LCD , Line Int., IEC

Features

  • Line Interactive UPS
  • Touch Screen LCD to display UPS information
  • Compact size (30,0 x 10,1 x 14,2cm)
  • Microprocessor control guarantees high reliability
  • Discharge and overcharge protection
  • Auto restart while AC is recovering
  • Off mode charging
  • Visual and audible Alarm system
  • Cold start function



SKU: 800-LCD-LI-T20 Categories: ,
MODEL PowerMust 600 LCD PowerMust 800 LCD
INPUT
Capacity 600VA/360W 800VA/480W
Nominal Voltage  220/230/240VAC
Voltage Range  162-290 VAC
Frequency Range 50/60 Hz ± 1 Hz (auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 220 / 230 /240 ± 10%
Frequency Range (Batt. Mode) 50 / 60 Hz ± 1 Hz
Transfer Time Typical 2-6 ms
Waveform (Batt. Mode) Simulated Sine Wave
Protection Overload, discharge and overcharge protection
BATTERY
Battery Type 12 V/ 7 AH x 1 12 V / 9 AH x 1
Recharge Time 4 hours to 90% capacity
Backup Time  (at 100W load) 16 min. 20 min.
AUDIBLE ALARM
Battery Mode Sounding every 10 seconds
Low Battery at battery mode Sounding every second
Fault Continuously sounding
Battery replacement Sounding every 2 seconds
Overload Sounding every 0.5 second
PHYSICAL
Dimension, D x W x H (mm) 300 x 101 x 142
Net Weight (kgs) 4,5 5
ENVIRONMENT
Operation Humidity 0-90% RH @ 0-40˚ C (non-condensing)
Noise Level Less than 40 dB
INTERFACE
Power Cord Connector Schuko  input powercord
Outlet 4 x IEC
Phoneline/ Network protection RJ11
USB port Yes
LED/LCD LCD
MANAGEMENT
USB Port Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC

Additional information

Weight 5.2 kg

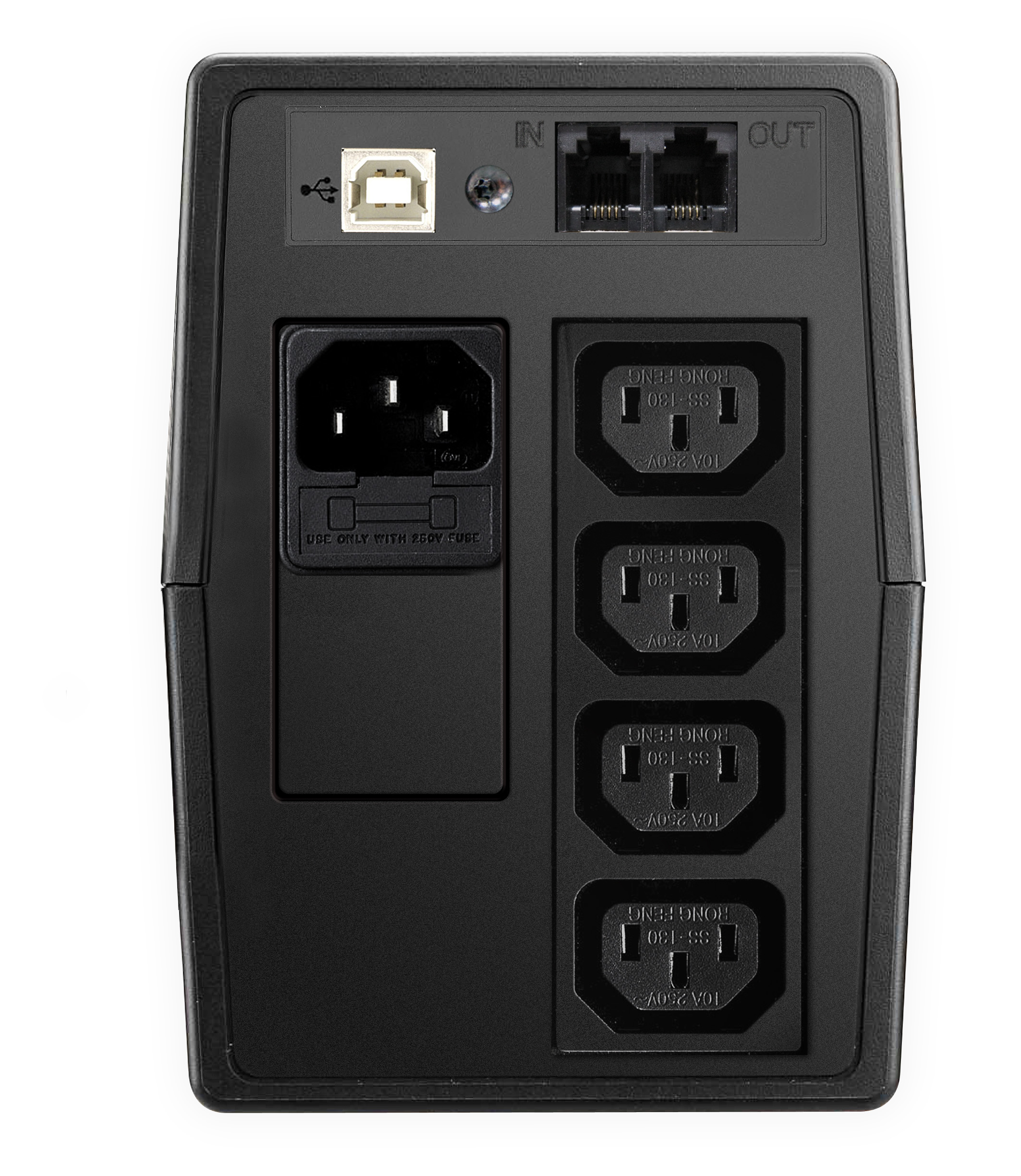

PM 600-800 LCD IEC back.jpg1mb20-09-2017

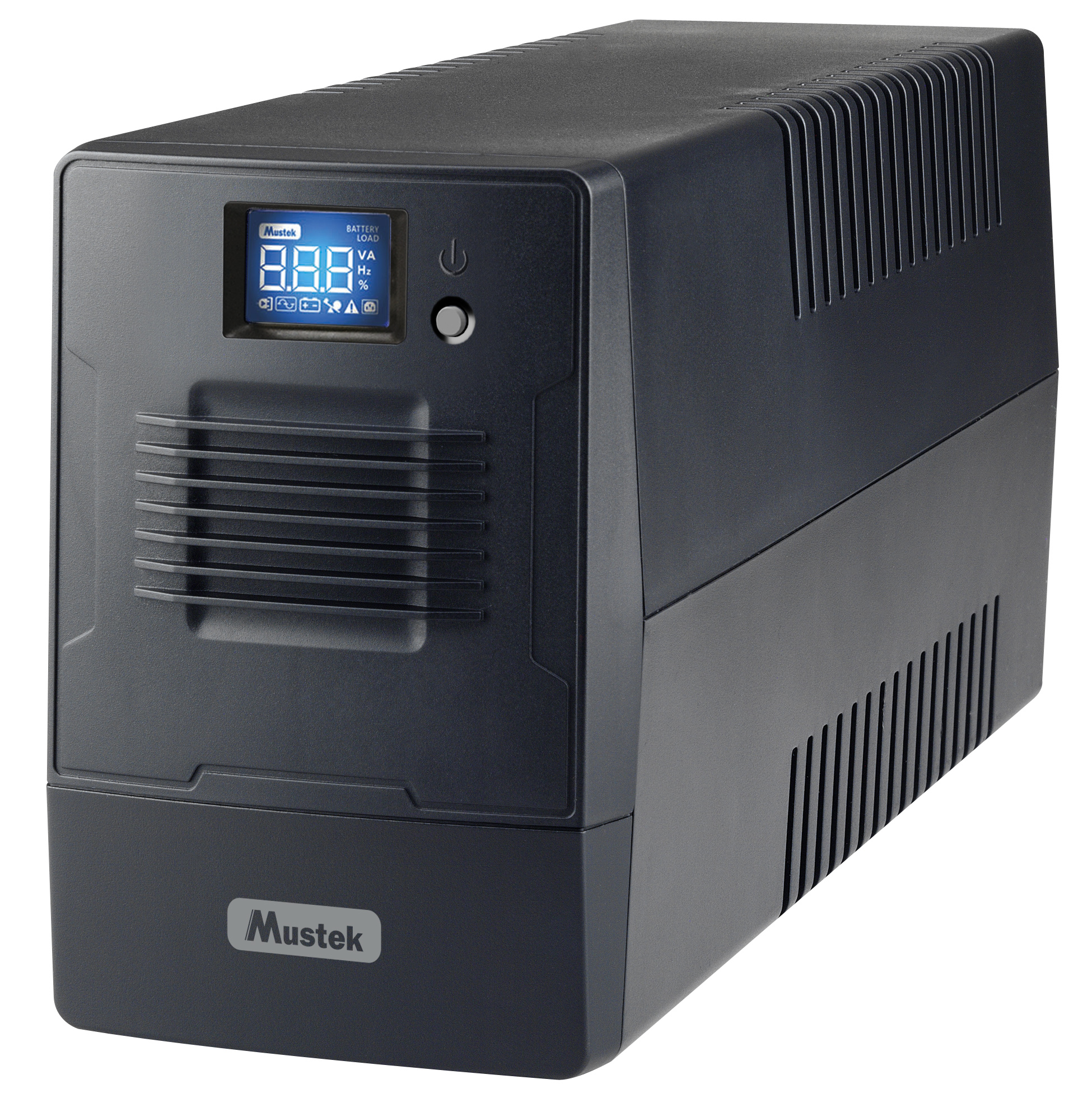

PM 600-800 LCD-R side.jpg1.5mb20-09-2017
600-800 LCD line interactive schuko or IEC.pdf0.6mb20-09-2017
PowerMust 400_600_800_1000_1500_2000 LED_LCD.pdf2mb04-06-2018
