Mustek PowerMust 3000 Sinewave LCD Online IEC
Out of stock
Mustek PowerMust 3000 Sinewave LCD Online IEC
Features
- Pure Sine Wave
- Output Power Factor 1
- True double conversion
- ECO mode energy saving
- Microprocessor control optimizes reliability
- 50/60 Hz Frequency Converter Mode
- Generator compatible
- Emergency Power Off (EPO) function
- Output THDv < 2% Linear Load
- Wide input voltage
- True double-conversion online UPS
| Specification | ||||||
| MODEL | PowerMust 1000 LCD | PowerMust 2000 LCD | PowerMust 3000 LCD | |||
| INPUT | ||||||
| Capacity | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W | |||
| Voltage Range | 110-300 VAC | |||||
| THDI | < 5% | |||||
| Frequency Range | 40 Hz ~ 70 Hz | |||||
| Phase | Single phase with ground | |||||
| Power Factor | ≥ 0.99 @ nominal voltage (100% load) | |||||
| OUTPUT | ||||||
| Output voltage | 200/208/220/230/240 VAC | |||||
| AC Voltage Regulation | ± 1% (batt. Mode) | |||||
| Frequency Range (Synchronized Range) | 47 ~ 53 or 57 ~ 63Hz | |||||
| Frequency range ( Batt. Mode) | 50/60 Hz ± 0.1 Hz | |||||
| Current Crest Ratio | 3:1 | |||||
| Harmonic Distortion | ≤ 2% THD (Linear Load); ≤ 4% THD (Non-Linear Load) | |||||
| Waveform (Batt. Mode) | Pure Sinewave | |||||
| EFFICIENCY | ||||||
| AC Mode | ≥ 89% @ Battery fully charged | ≥ 91% @ Battery fully charged | ||||
| Battery Mode | ≥ 88% | ≥ 90% | ||||
| BATTERY | ||||||
| Battery Type | 12 V / 7 AH x 3 | 12 V / 7 AH x 6 | 12 V / 9 AH x 6 | |||
| Recharge Time | 3 hours recover to 95% capacity for internal battery@ 2A charging current | |||||
| Charging Current | Default 2A, max.12A adjustable | Default 2A, max. 8A adjustable | ||||
| BACK-UP TIME | ||||||
| Back up time (PF 0,8 Full Load) | > 5 min. | > 5 min. | > 4 min. | |||
| AUDIBLE ALARM | ||||||
| Battery Mode | Sounding every 5 seconds | |||||
| Battery Low | Sounding every 2 seconds | |||||
| Fault | Continuesly sounding | |||||
| Overload | Sounding every second | |||||
| TRANSFER TIME | ||||||
| BAT <–> LINE | 0 ms | 0 ms | 0 ms | |||
| INV <–> BYPASS | < 4 ms | < 4 ms | < 4 ms | |||
| INV –> ECO | 0 ms | 0 ms | 0 ms | |||
| ECO –> INV | < 10 ms | < 10 ms | < 10 ms | |||
| PHYSICAL | ||||||
| Dimension, D X W X H (mm) | 397 x 145 x 220 | 421 x 190 x 318 | ||||
| Net Weight (kgs) | ||||||
| ENVIRONMENT | ||||||
| Operation Environment | 0-45˚ | |||||
| Operation Humidity | 20-95% (non-condensing) | |||||
| Noise Level | Less than 50 dB @ 1 Meter | |||||
| INTERFACE | ||||||
| EPO | Emergency Power Off | |||||
| Intelligent slot | External Type of SNMP / RS485 / AS 400 / USB card | |||||
| AC Outlets IEC | 4 x | 8x | 8 + 1 | |||
| USB port | USB | |||||
| ACCESSORIES | ||||||
| Accessories | User manual,EPO connector x1, Input power cord schuko, Output cable IEC x2, USB cable x 1, Software CD | |||||
| MANAGEMENT | ||||||
| Smart RS 232 or USB Port | Supports Windows® 2000/2002/XP/Vista/2008/7/8/10, Linux and MAC | |||||
| Optional SNMP | Power Management from SNMP manager and Web browser | |||||
Additional information
| Weight | 5.2 kg |
|---|

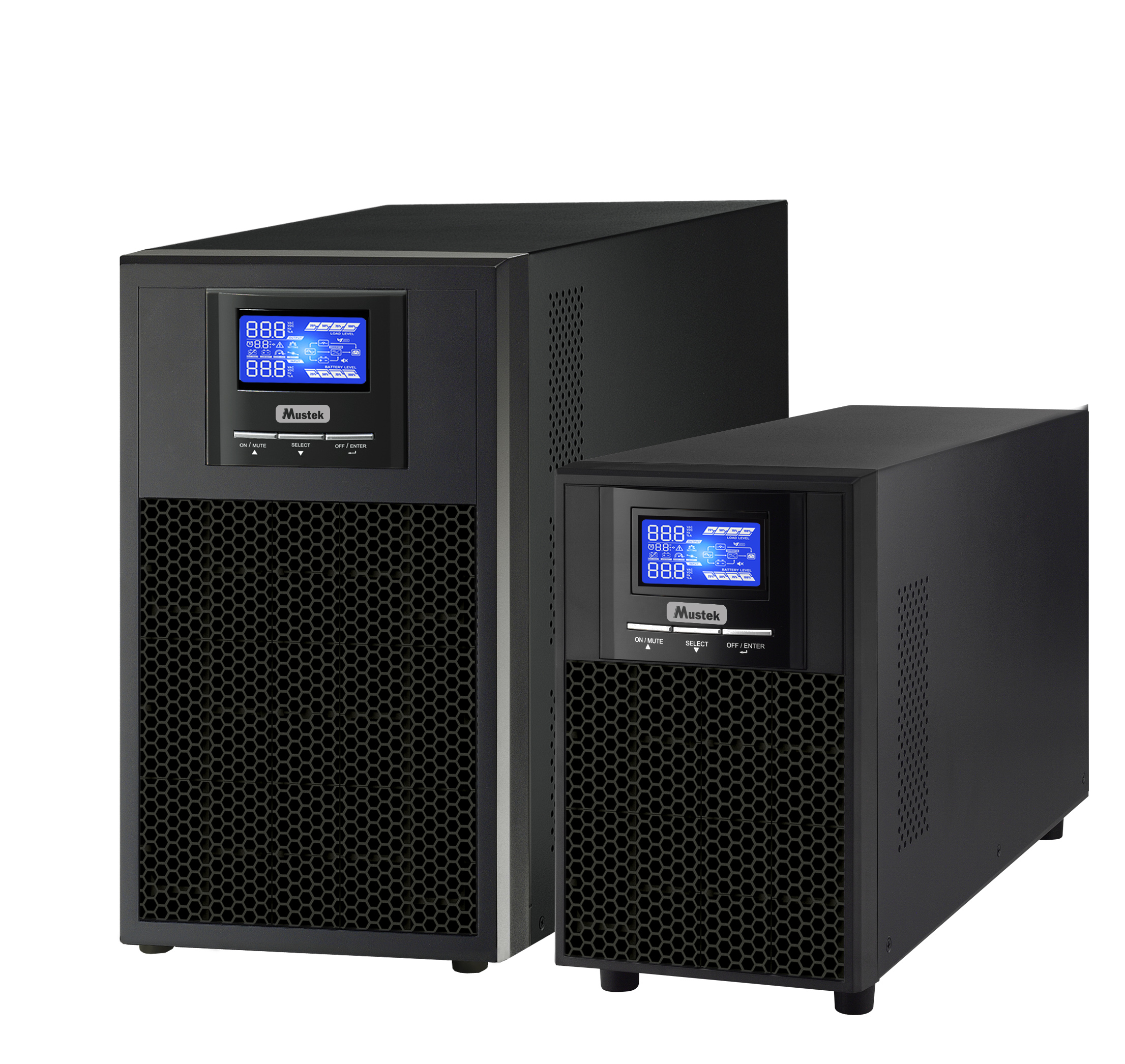

 | PM 1000-2000-3000 LCD Online IEC front.jpg | 1mb | 20-09-2017 |

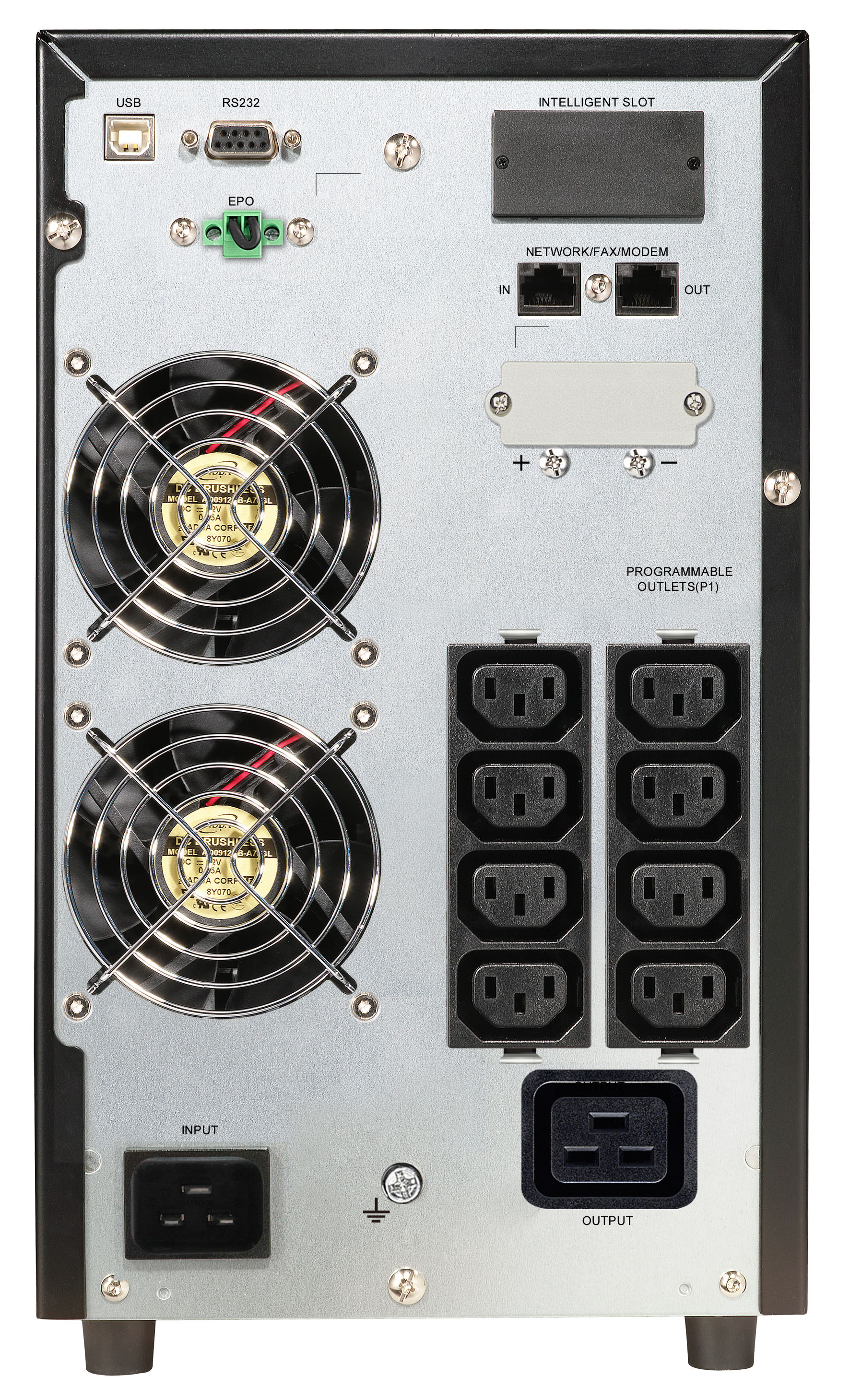

| PM 3000 LCD Online IEC back.jpg | 1.2mb | 20-09-2017 |
| 1000-2000-3000 LCD online IEC.pdf | 0.7mb | 20-09-2017 |
| PowerMust 1000_2000_3000 LCD Online IEC.pdf | 2.6mb | 04-06-2018 |
