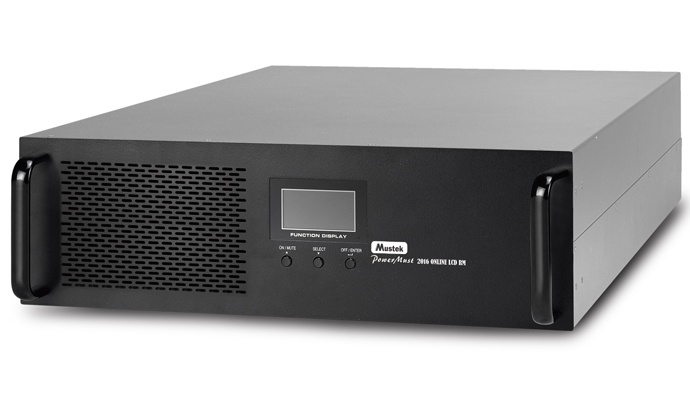

PowerMust 2016 (L) LCD RM
PowerMust 2016 (L) LCD RM
| Product type | Uninterrupted power supply; Online |
| Capacity | 2000 VA / 1600 W |
| Product type | Uninterrupted power supply; Online |
| Capacity | 2000 VA / 1600 W |
| Input | Voltage Range Low line transfer: “160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 % or 80 VAC / 70 VAC / 60 VAC / 50 VAC ± 5 % (based on load percentage 100% – 80% / 80% – 70% / 70% – 60% / 60% -0) “ |
| Voltage Range Low line/Comeback: 175 VAC ± 5 % or 85 VAC ± 5 % |
|
| Voltage Range High line transfer: 300 VAC ± 5 % or 150 VAC ± 5 % |
|
| Voltage Range Low line/Comeback: 290 VAC ± 5 VAC or 143 VAC ± 3 VAC |
|
| Frequency range: 40 Hz ~ 70 Hz |
|
| Phase: Single phase with ground |
|
| Power factor: ≧ 0.99 @ 220-230 VAC (input voltage) |
|
| Output | AC voltage regulation (Batt. mode): ±1 % |
| Frequency range (Synchronized Range): 47 ~ 53 Hz or 57 Hz ~ 63 Hz | |
| Frequency range (Batt. mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz | |
| Current crest ratio: 3:1 | |
| Harmonic distortion: ≦ 4 % THD (Linear Load) ≦ 7 % THD(Non-linear Load) |
|
| Transfer time AC to DC: Zero | |
| Transfer time Inverter to Bypass: 4 ms (Typical) | |
| Waveform (Batt. mode): Pure Sine Wave | |
| Efficiency | To AC mode: 88% |
| To battery mode: 83% | |
| Battetry | Battery voltage: 12 V/7 Ah x 6 |
| Typical recharge time: 4 hours recover to 90% capacity | |
| Charging current (max.): 1.0 A | |
| Charging voltage: 82.1 VDC ± 1% | |
| Long-run model Battery voltage: Depending on the capacity of external batteries | |
| Long-run model Typical recharge time: / | |
| Long-run model Charging current (max.): 8.0 A | |
| Long-run model Charging voltage: 82.1 VDC ± 1% | |
| Indicators | LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| Alarm | Battery mode: Sounding every 4 seconds |
| Low battery: Sounding every second |
|
| Overload: Sounding twice every second |
|
| Fault: Continuously sounding |
|
| Physical | Standard model Dimension, DXWXH (mm): 580 X 438 X 133 [3U] |
| Standard model Net weight (kg): 29 | |
| Long-run model Dimension, DXWXH (mm): 580 X 438 X 133 [3U] |
|
| Long-run model Net weight (kg): 17 |
|
| Operating environment | Humidity: 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise level: Less than 45dB @ 1 Meter | |
| Management | Smart RS-232/USB: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC |
| Optional SNMP: Power management from SNMP manager and web browser | |
| Accessories | IEC outlet cable x 2, USB cable, User guide, Software CD, optional: SNMP card |
Additional information
| Weight | 30 kg |
|---|
 | image01.jpg | 0.1mb | 14-07-2017 |

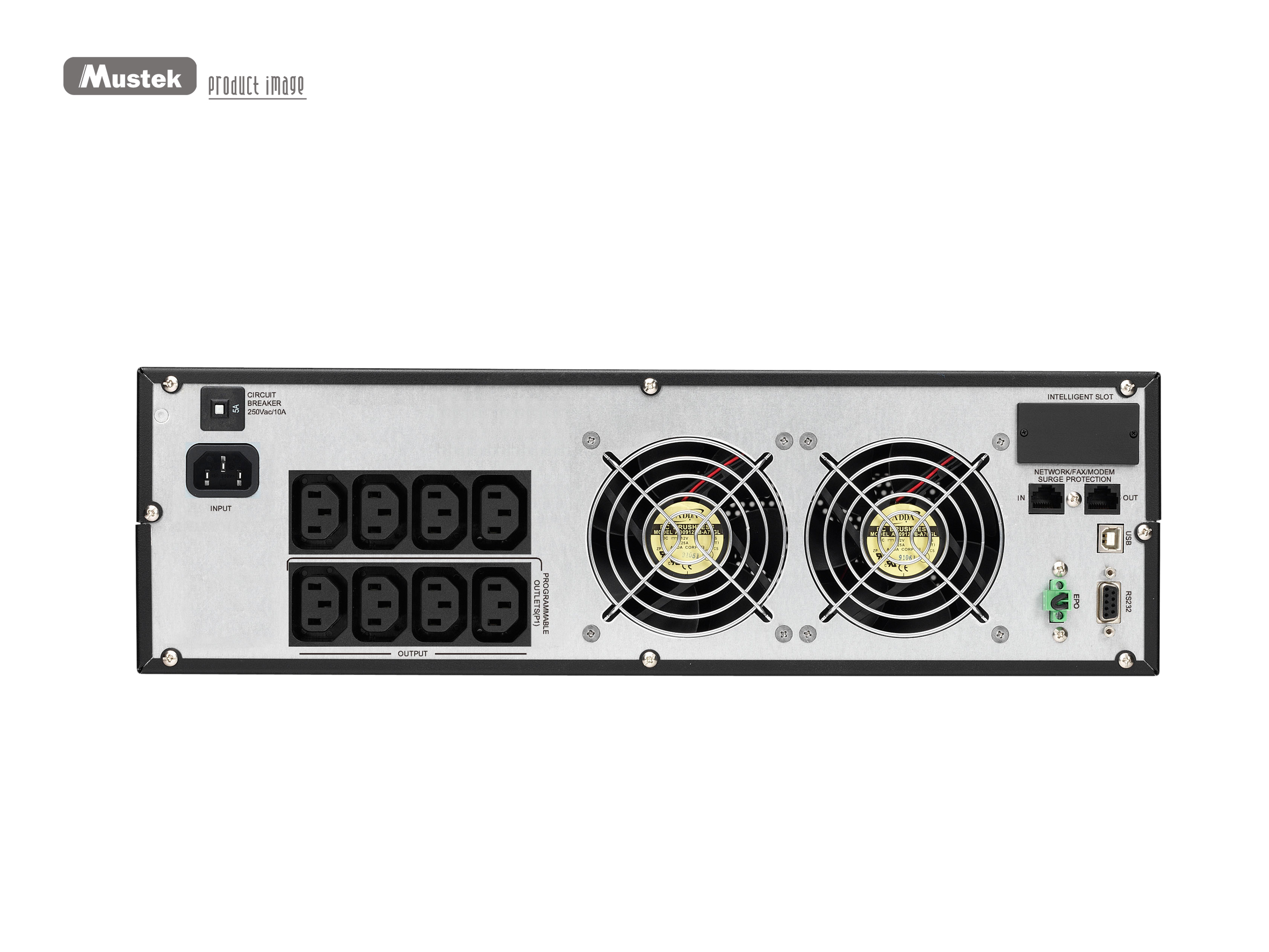

| 20x15 product image 300dpi PowerMust 2016 Online LCD RM rear.jpg | 1mb | 14-07-2017 |

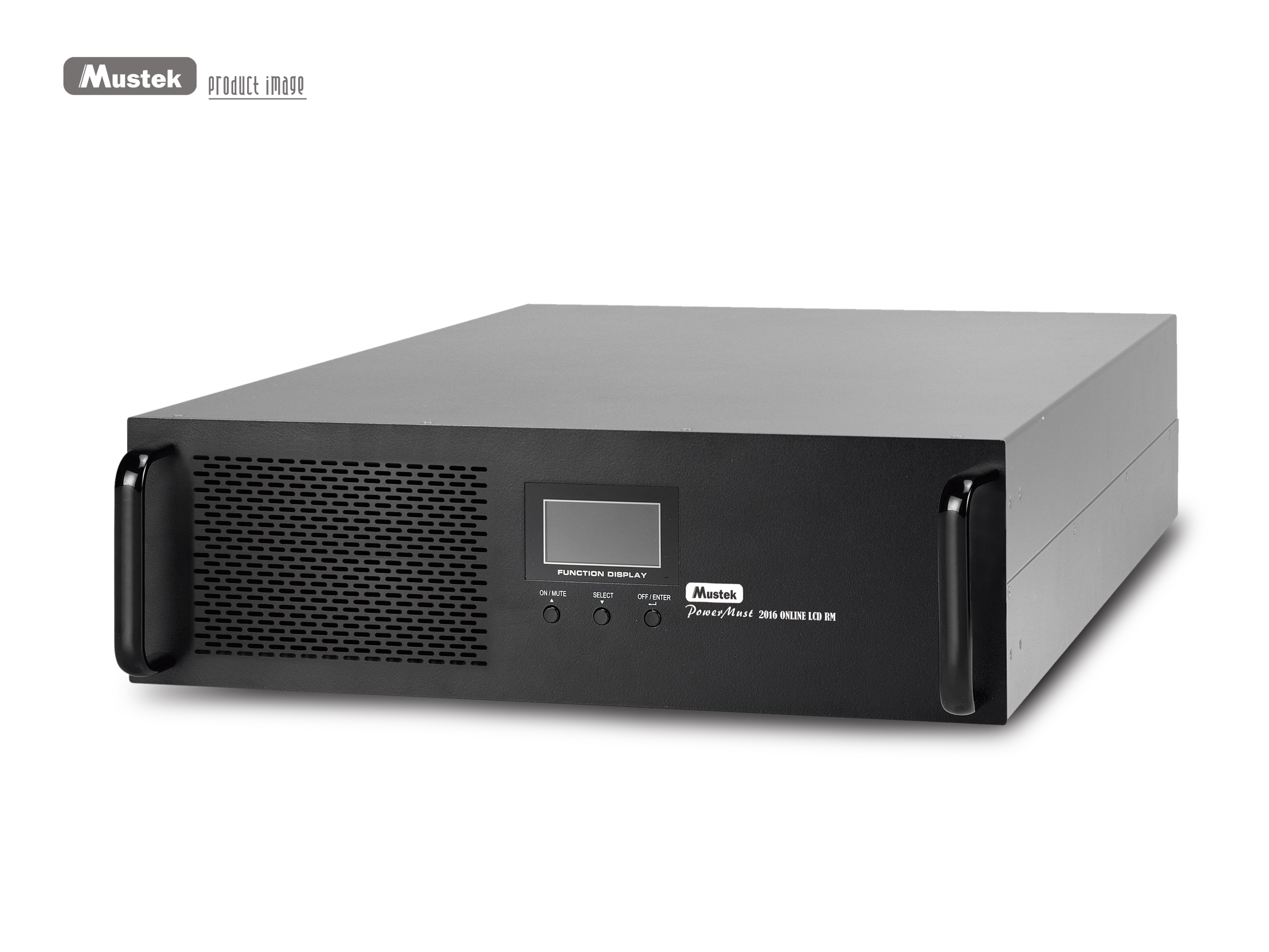

| 20x15 product image 300dpi PowerMust 2016 Online LCD RM.jpg | 0.9mb | 14-07-2017 |

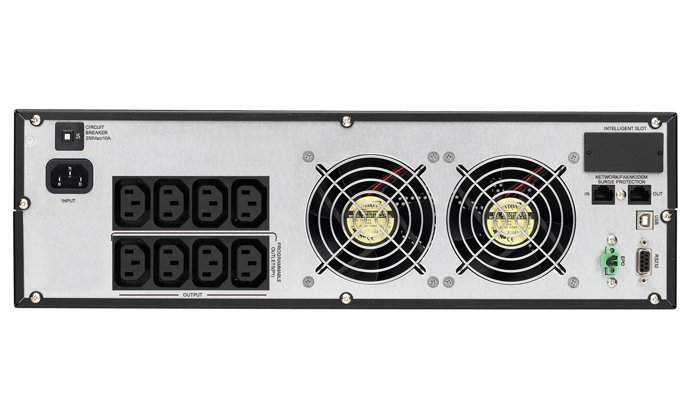

| image02.jpg | 0.1mb | 14-07-2017 |
