PowerMust 2016S NetGuard
PowerMust 2016S NetGuard
| Product type | Pure sine wave line-interactive UPS |
| Capacity | 2000 VA / 1600 W |
| Product type | Pure sine wave line-interactive UPS |
| Capacity | 2000 VA / 1600 W |
| Input | Nominal voltage: 110/120 VAC or 220/230/240 VAC |
| Acceptable voltage range: 81-145 VAC or 162-290 VAC | |
| Frequency range: 60/50 Hz (auto sensing) | |
| Output | Voltage regulation (AC Mode) Nominal voltage: 110/120 VAC or 220/230/240 VAC |
| Voltage regulation (AC Mode) Boost: Input×1.15 |
|
| Voltage regulation (AC Mode) Buck: Input×0.87 |
|
| Voltage regulation (Batt. mode): ±3% (before battery alarm) | |
| Frequency range (Batt. mode): 50 Hz or 60 Hz ± 1 Hz | |
| Current crest ratio: 3:1 | |
| Harmonic distortion: 8% max @ 100% linear load; 15% max @ 100% non-linear load (before alarm) | |
| Transfer time: Typical 2-6 ms, 10ms max. | |
| Waveform (Batt. mode): Pure sine wave | |
| Efficiency | AC mode: 97% |
| Buck & boost mode: 90% | |
| Battery mode: 85% | |
| Battery | Battery type & number: 12 V/9 Ah x4 |
| Charging voltage: 54.8 VDC ± 1% | |
| Typical recharge time: 4 hours recover to 90% capacity | |
| Indicators | LCD display: AC mode, Battery mode, Load level, Battery level, Input voltage, Output voltage, Overload, Fault, and Low battery |
| Protection | Full protection: Overload, discharge, and overcharge protection |
| Alarm | Battery mode: Sounding every 10 seconds |
| Low battery: Sounding every second | |
| Overload: Sounding every 0.5 second | |
| Battery replacement alarm: Sounding every second | |
| Fault: Continuously sounding | |
| Physical | Dimension, DXWXH (mm): 480 x 438 x 88 |
| Net weight (kg): 25 | |
| Environment | Operating humidity: 0-90 % RH @ 0- 40°C (non-condensing) |
| Noise level: Less than 45dB | |
| Management | Smart RS-232/USB: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC |
| Optional SNMP: Power management from SNMP manager and web browser | |
| Accessories | User guide, Tower bracket, Input power cord x 1pcs, IEC output cable x 2pcs, Fitting ears x 1paar |
Additional information
| Weight | 26 kg |
|---|

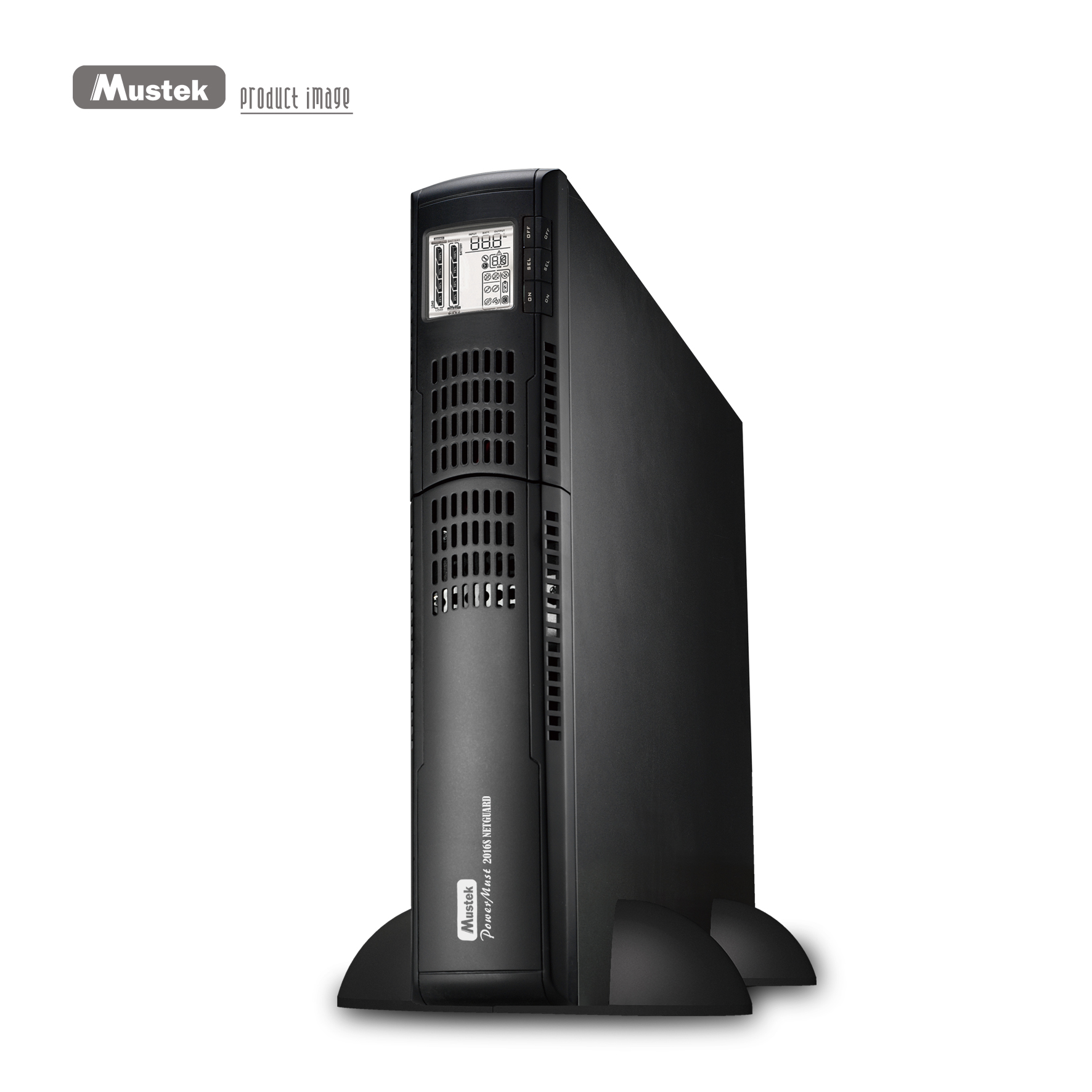

 | 15x15 product image 300dpi PowerMust 2016S NG Tower.jpg | 0.6mb | 14-07-2017 |

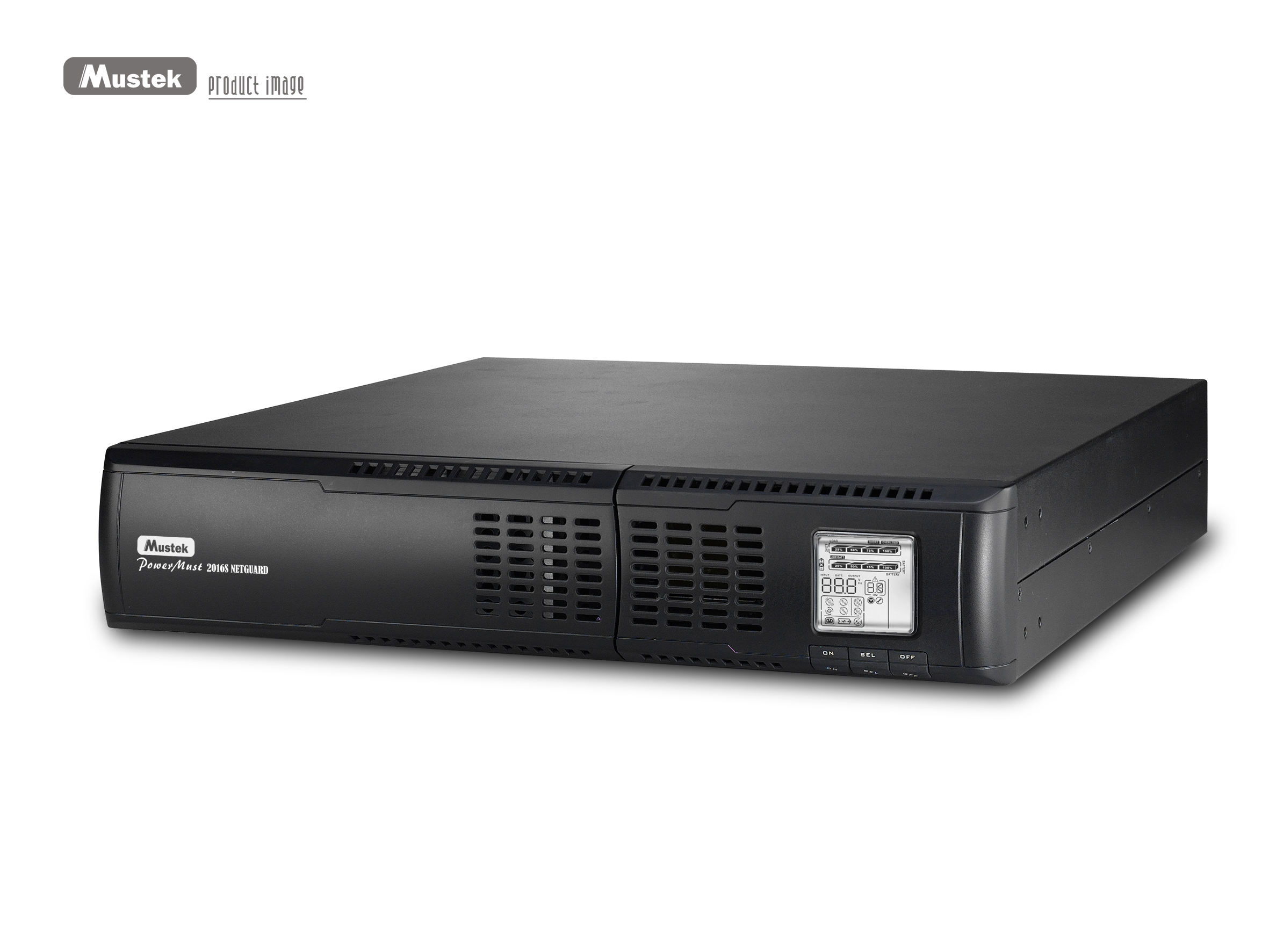

| 20x15 product image 300dpi PowerMust 2016S NG_Rack.jpg | 0.9mb | 14-07-2017 |
| PM_864_1188_1512_2016_2520_3024S_NetGuard UM-En.pdf | 2.2mb | 14-07-2017 |
