Mustek PowerMust 2000 LCD Line Int., IEC / Schuko

Out of stock

Mustek PowerMust 2000 LCD Line Int., IEC / Schuko

Features

  • Line Interactive UPS, LCD
  • Compact size (32 x 13 x 18,2 cm)
  • Excellent microprocessor control guarantees high reliability
  • Boost and buck AVR for voltage stabilization
  • Auto restart while AC is recovering
  • Off mode charging
  • Visual and Audible Alarm System
  • Auto Voltage Regulator
  • Cold start on Battery



SKU: 2000-LCD-LI-T30 Categories: ,
Specification
MODEL PowerMust 1000 PowerMust 1500 PowerMust 2000
INPUT
Capacity 1000VA/600W 1500VA/900W 2000VA/1200W
Nominal Voltage  220/230/240VAC
Voltage Range  162-290 VAC
OUTPUT
AC Voltage Regulation (Batt. Mode) ± 10%
Frequency Range (Batt. Mode) 50/60  Hz ± 1 Hz  (auto sensing)
Transfer Time Typical 2-6 ms
Waveform (Batt. Mode) Simulated Sine Wave
Protection Overload, discharge and overcharge protection
BATTERY
Battery Type 12 V / 7 AH x 2 12 V/ 9 AH x 2 12 V / 9 AH x 2
Typical Recharge Time 4-6 hours to 90% capacity
Protection Overload, Discharge and Overcharge protection
BACKUP TIME
120 W 35 min. 45 min. 45 min.
Full Loading 30 sec. 1 min. 20 sec. 35 sec.
AUDIBLE ALARM
Battery Mode Sounding every 10 seconds
Low Battery at Battery mode Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
Battery Replacement Sounding every 2 seconds
PHYSICAL
Dimension D x W x H (mm) 320 x 130 x 182
Net Weight (kgs) 8,2 10,4 10,6
ENVIRONMENT
Operation Humidity 0-90% RH @ 0-40˚ C (non-condensing)
Noise Level Less than 40 dB
INTERFACE
Power cord connector IEC 1x
IEC  / Schuko Outlet 2 / 2 2 / 2 2 / 2
Phoneline/Network protection RJ45
USB Port USB
LED/LCD LCD
Fan No Yes
MANAGEMENT
USB Port Windows® XP/Vista/2008/7/8/10, Linux and MAC

Additional information

Weight 5.2 kg

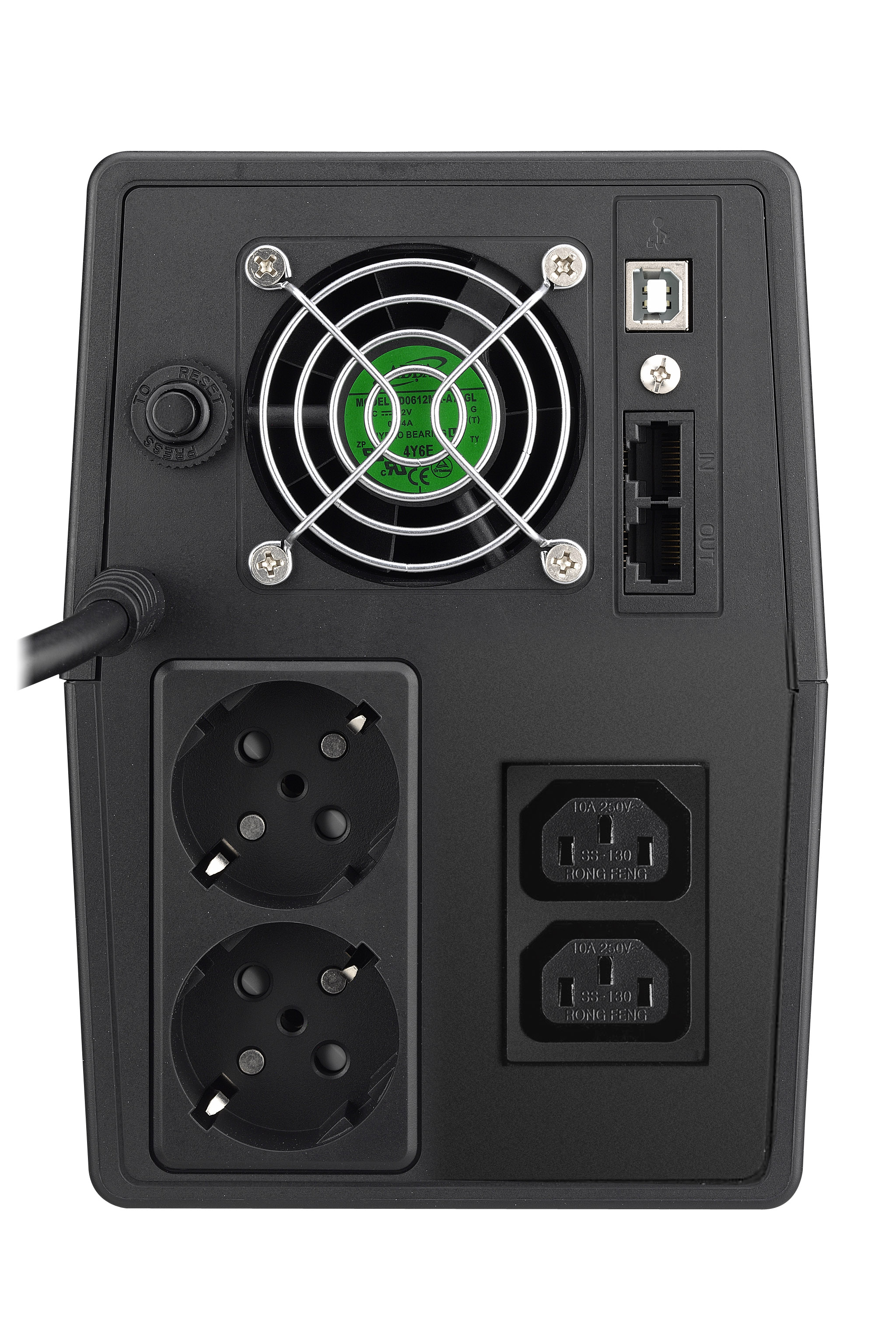

PM 1500-2000 LCD IEC_Schuko back.jpg1.3mb20-09-2017

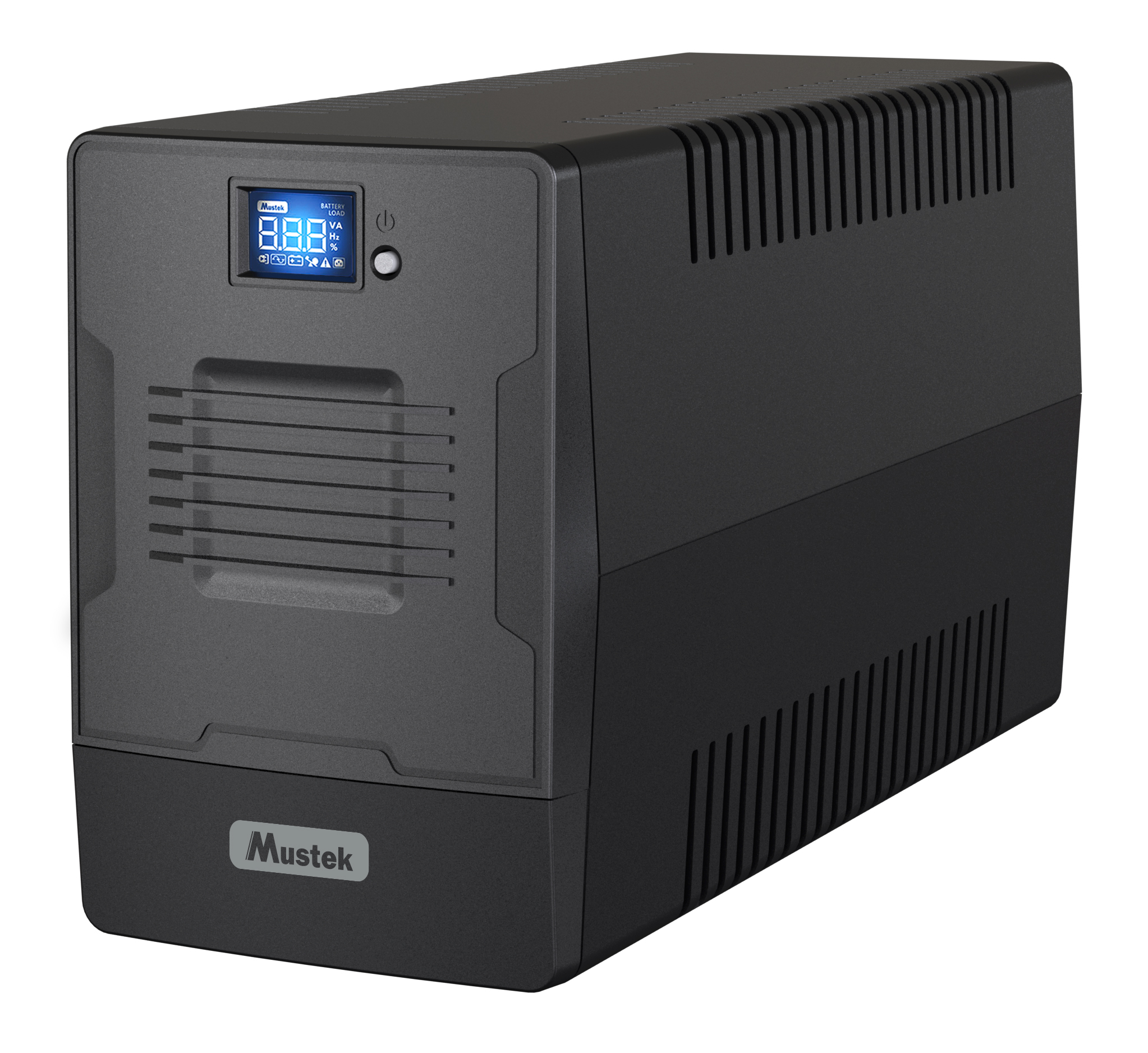

PM 1000-1500-2000 LCD Line int R side.jpg1.5mb20-09-2017
1000-1500-2000 LCD IEC-Schuko.pdf0.5mb20-09-2017
PowerMust 400_600_800_1000_1500_2000 LED_LCD.pdf2mb04-06-2018
